AM-CF1

The Audio Collaboration System that will change your perception of web conferences.

Discuss the content
– not the connection.

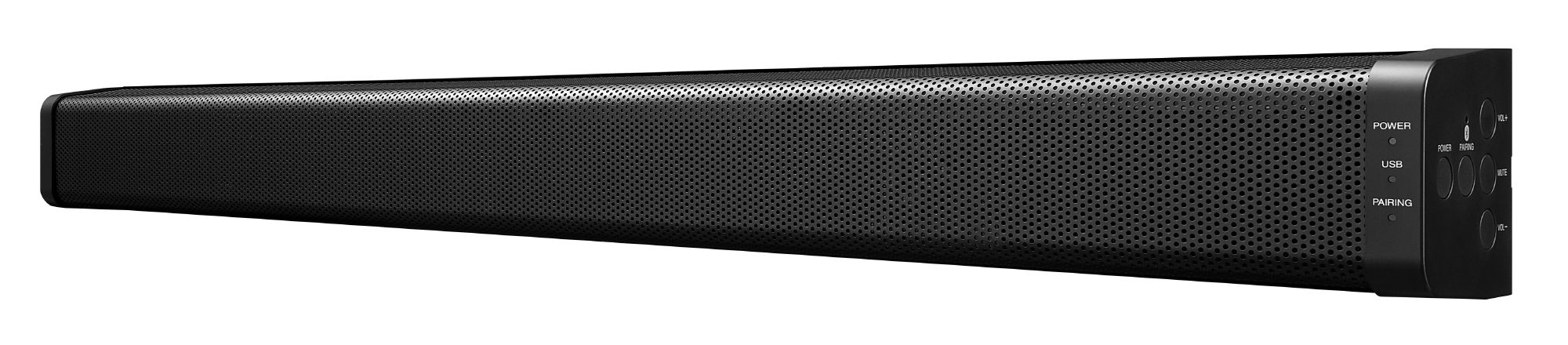

The AM-CF1 is an Audio Collaboration System
that will change your perception of web conferences.

Imagine you are in a team conference and everyone gets clearly heard across different locations - no matter how passionately you discuss your ideas. The AM-CF1 with its integrated microphone array and soundbar turns any web conference in a natural conversation - clear as face-to-face.

ADVANTAGES

Natural conversation in web conferences

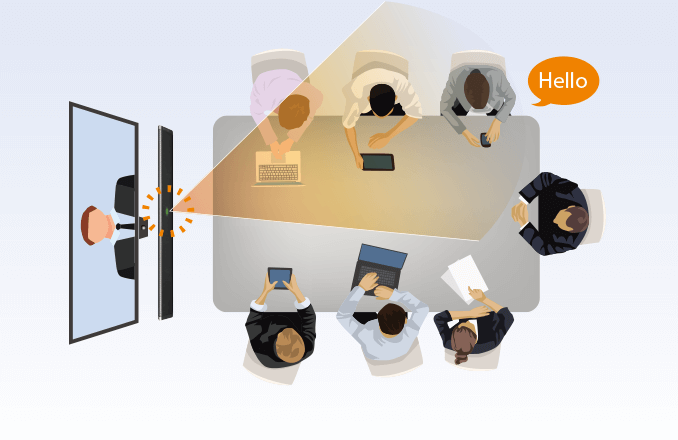

The integrated array of 8 steerable microphones automatically focuses on whoever is talking in real-time, allowing a natural conversation in web conferences.

Perfect sound quality

The integrated soundbar with two active 2-way-speakers ensures that everyone gets heard clear and loud. The built in Digital Signal Processor further improves the sound quality with functions such as Automatic Echo Cancellation and Automatic Noise Reduction.

Join the meeting via your mobile phone

Mobile phones can be connected via Bluetooth® allowing anyone to attend your conference on the road.

Watch the video

Modules

Download the module to change your controller-designing process from coding to "Drag and Drop".

Open Download Page

FURTHER BENEFITS

Black and white
to fit your office

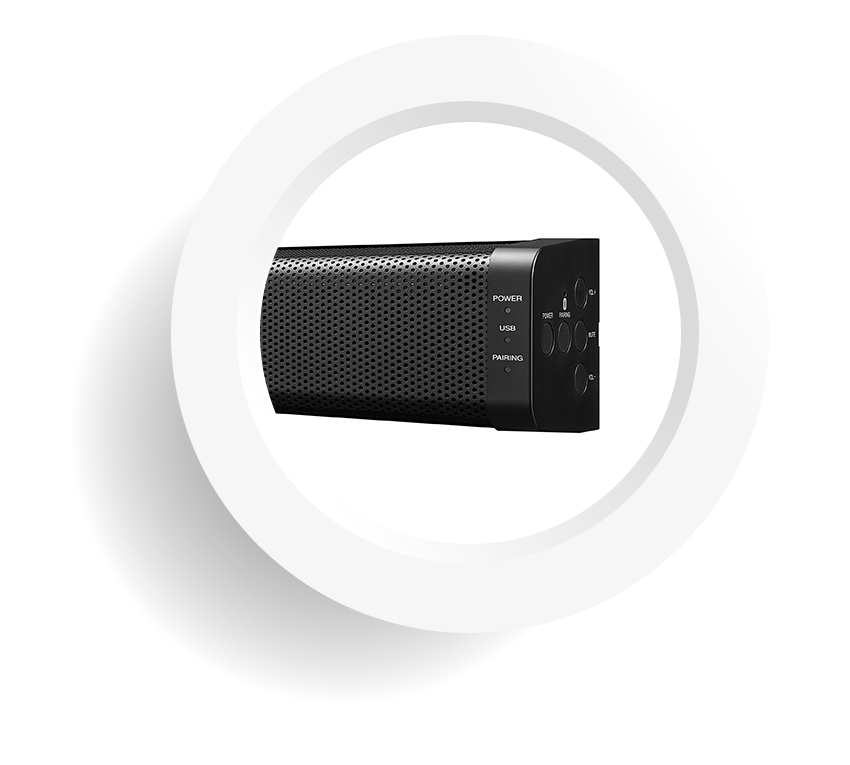

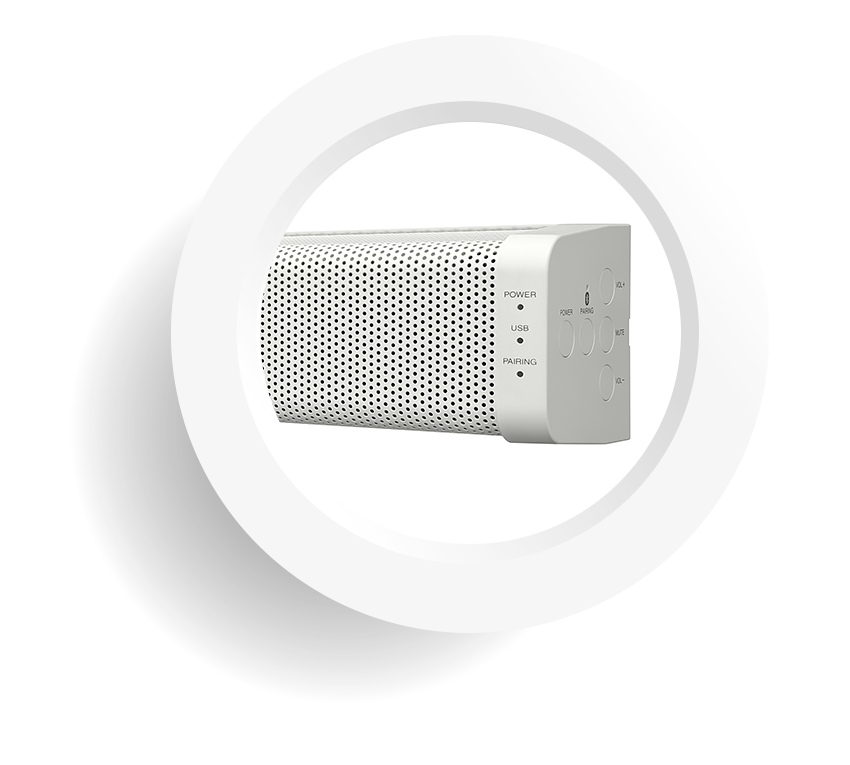

The AM-CF1 is in black and white color available, letting it fit in any interior design.

Free your desk

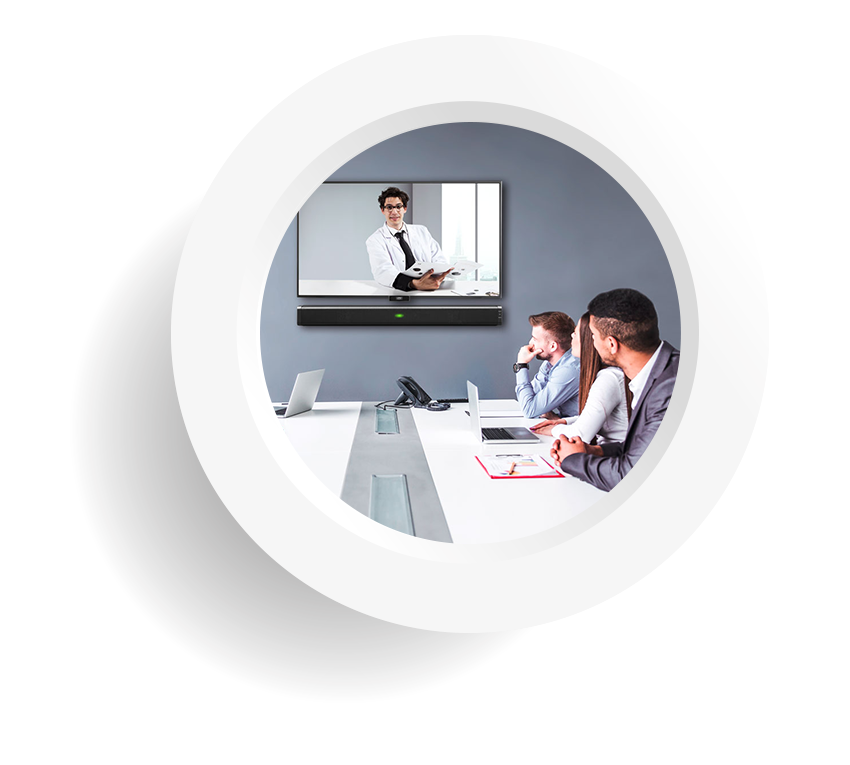

The quick and easy installation on a wall frees your desk of any communication technology, giving space for your documents, devices and your ideas.

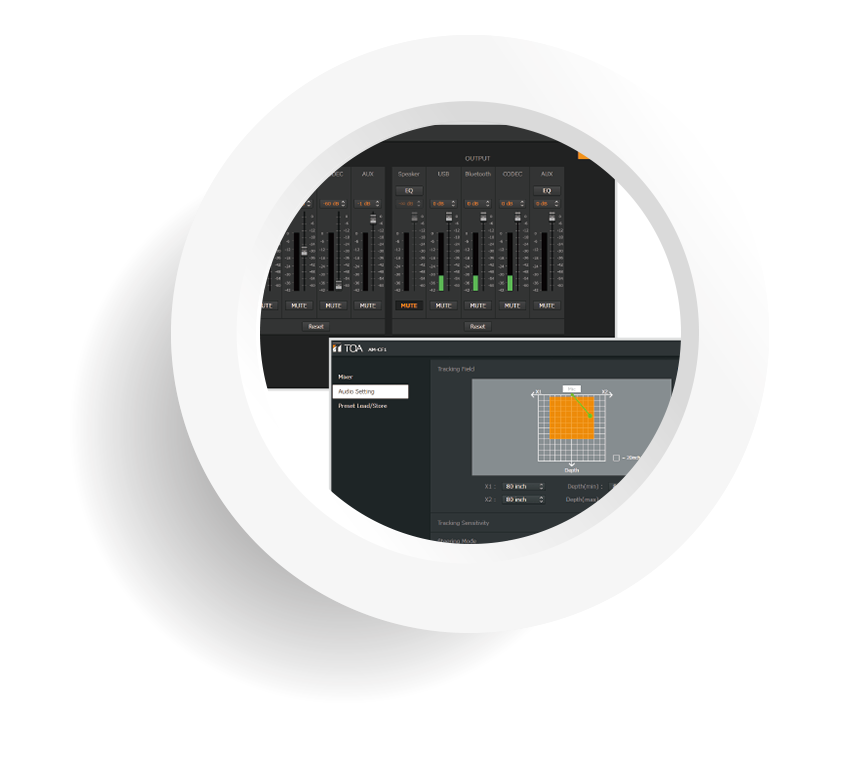

Settings via web browser

Access the AM-CF1‘s settings via your internet browser and adapt the voice tracking as well as the audio settings to your room and requirements in an easy and intuitive way.

FAQ

Demandez un devis pour l'AM-CF1

AM-CF1

The Audio Collaboration System that will change your perception of web conferences.

Further Details

Buttons Power switch, Bluetooth pairing, Mute, Volume Up/Down
Control input 2 inputs, removable terminal block (6 pins), no-voltage make contact
Control output 2 outputs, removable terminal block (6 pins), no-voltage make contact, relay contact output
Current consumption 3.5 A
Dimensions (W x H x D) 800 x 83.2 x 85.8 mm
Finish Aluminium, Steel plate, ABS resin, 30% gloss, black
Indicator Power (blue/blue-green/green/orange/red), USB connection (green/blue), Bluetooth (blue), Multifunction (green/red)
Inputs USB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1, 3.0 type-B port
Bluetooth: 2 channels
Codec: 1 channel, RCA pin jack, −10 dBV, 10 kΩ, unbalanced type
AUX: 2 channels, RCA pin jack, −10 dBV, 10 kΩ, unbalanced type
Microphone Unidirectional electret condenser type
Network 10BASE-T/100BASE-TX, RJ-45
Operating humidity 90% RH or less (no condensation)
Operating temperature 0 – 40˚C
Outputs SB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1, 3.0 type-B port
Bluetooth: 1 channel
Codec: 1 channel, RCA pin jack, −10 dBV, 600 Ω, unbalanced type
AUX: 2 channels, removable terminal block (6 pins), 4 dBu, 600 Ω, balanced (electronically-balanced) type
Internal speaker: 2-way × 2 (woofer × 2, tweeter × 1)
Power source 12 V DC
Weight 4.6 kg
