A-1712

Mixer Amplifiers

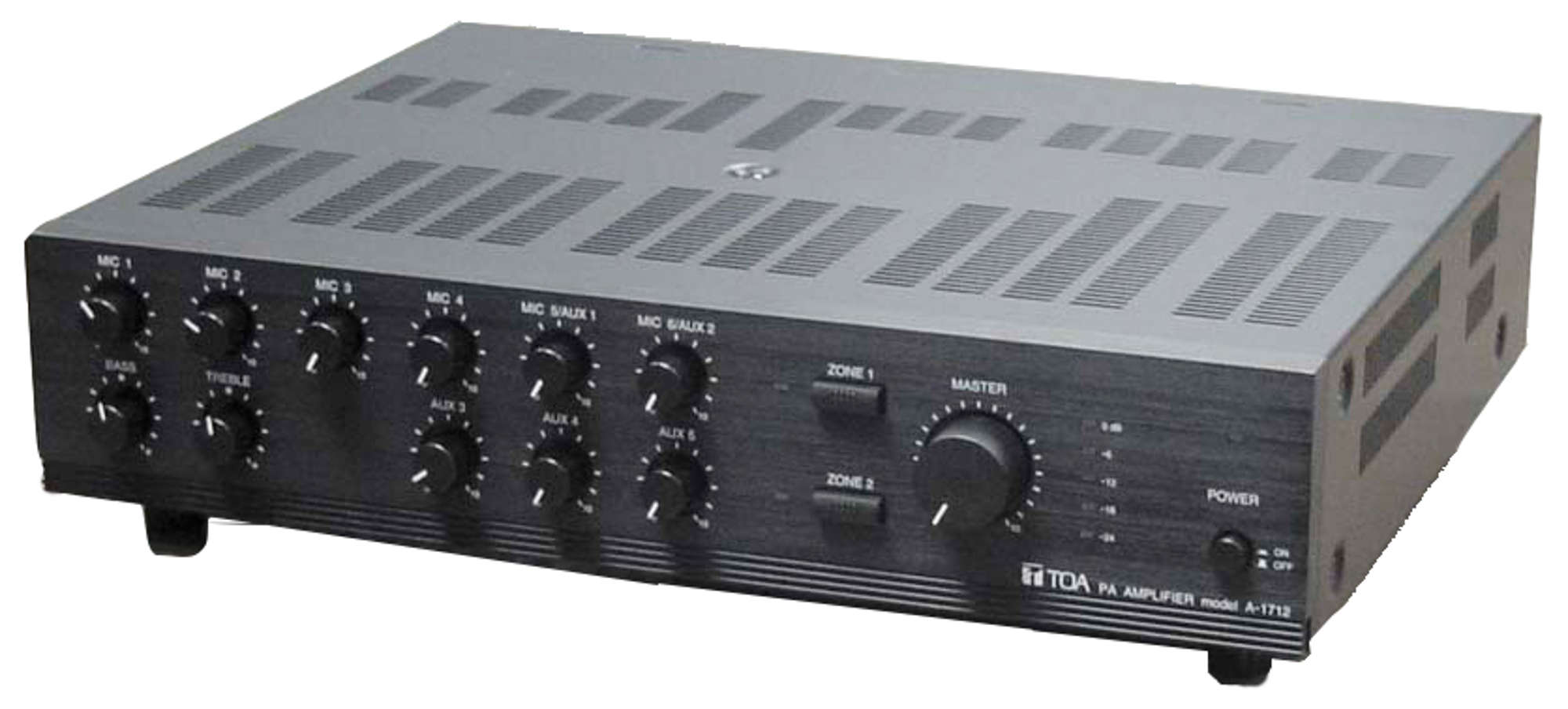

Equipped with 6 Microphone inputs and 5 AUX inputs (simultaneous use of 9 inputs possible), the A-1712 PA amplifier of 120 W is designed to suit the following PA system applications: announcements, BGM, and broadcasting in mosques, churches, large rooms, and factories.

3 versions available: 60 W, 120 W or 240 W
User-friendly front panel allows easy operation
Individual zone speaker selection buttons enable broadcasting to 2 separate zones
One of 3 different program sources can be broadcasted
High-quality circuitry for wide frequency response (e.g. for CD music sources and hook-up of FGM / BGM speakers)
Recording output
6 MIC inputs
AUX-1, 2, 3 inputs for tuner, cd player or other BGM sources

Brochure

Specifications
Application examples
Equipment
Tender text
Downloads

Specifications

Specifications for product:

	A-1712
Power source	220 - 230 V AC, 50 / 60 Hz
Power / current consumption	258 W
Frequency response	50 Hz - 20 kHz
Rated output	120 W
Finish	Steel plate, ABS resin, black
Dimensions	420 x 107.7 x 367 mm (W x H x D)
Weight	12.6 kg
Distortion	< 2 % (at 1 kHz, rated power)
S/N ratio	100 dB(A) (Master volume: min )
Number of channels	1
Connectable microphones	6
Inputs	Mic 1-6 -60 dBV, 600 Ohm, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack AUX 1 - 2: -20 dBV, 600 Ohm, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack . Either MIC 5 or AUX 1, and either MIC 6 or AUX 2 selectable. AUX 3 - 4: -20 dBV, 10 kOhm, unbalanced, RCA pin jack AUX 5: -20 dBV, 10 kOhm, unbalanced, combined type of XLR-3-31 equivalent and phone jack PWR AMP IN: 0 dBV, 600 Ohm, unbalanced, RCA pin jack (An equalizer or other signal processor connectable between LlNE OUT and PWR AMP IN terminals)
Outputs	REC: 0 dBV, 600 Ω, unbalanced, RCA pin jack SPEAKER: 100 V (83 Ω), 4 – 16 Ω
