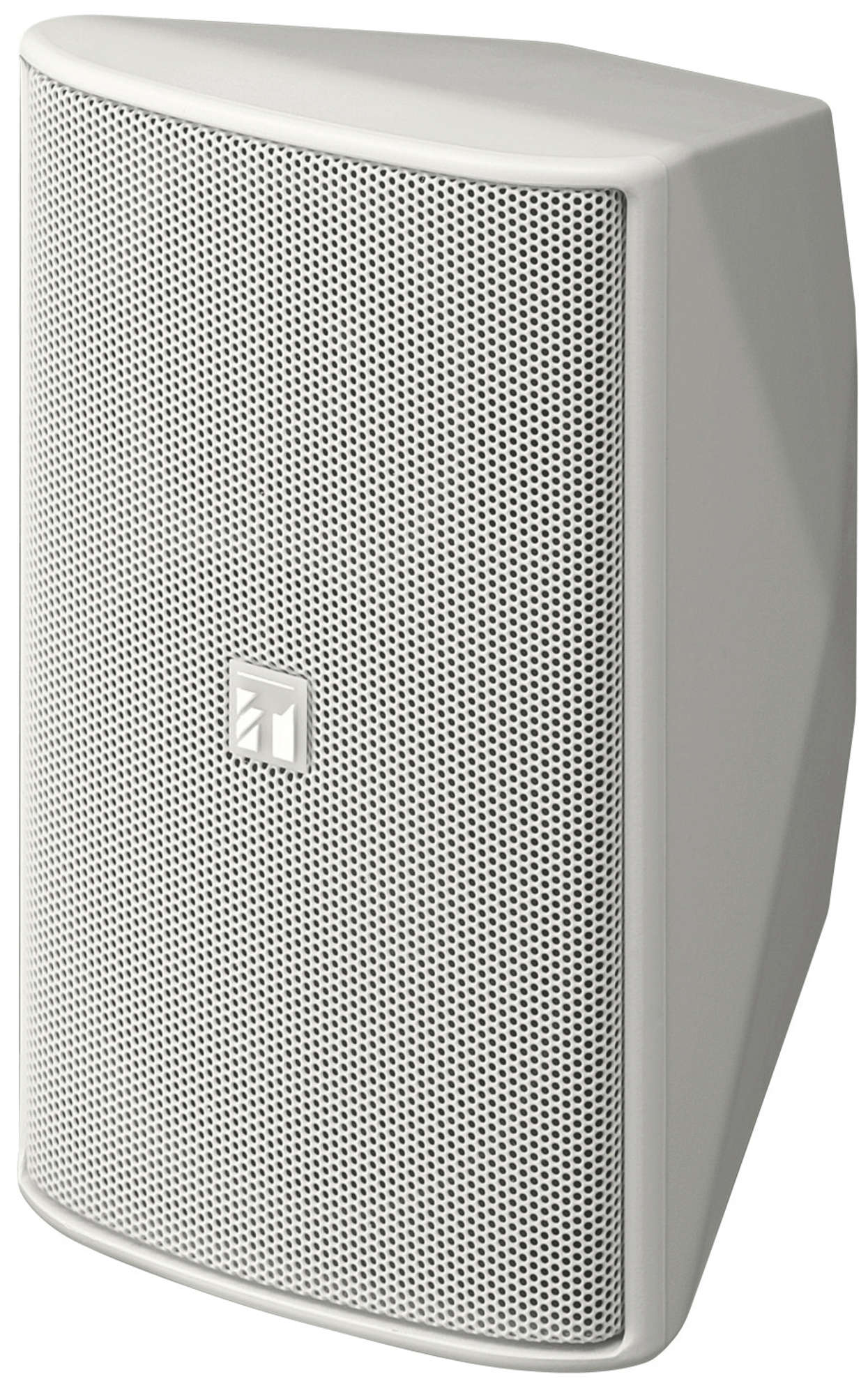

F-1300WTWP
Design Speakers
The F-1300 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application. The F-1300BTWP features a water-proof design (splash-proof type meeting IPX4 standard), so that it can be permanently installed outdoors.
- Weatherproof
- Compact wide-dispersion speaker
- Dispersion angle of 110° x 100°
- 2-way speaker with high quality 13 cm woofer and balanced dome tweeter
- Pan-tilt wall/ceiling bracket included
- Paintable
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| F-1300WTWP | F-1300B | F-1300BT | F-1300BTWP | F-1300W | F-1300WT | |
|---|---|---|---|---|---|---|
| Frequency response |
80 Hz - 20 kHz |
80 Hz - 20 kHz |
80 Hz - 20 kHz |
80 Hz - 20 kHz |
80 Hz - 20 kHz |
80 Hz - 20 kHz |
| Sensitivity (1 W, 1 m) |
90 dB |
90 dB |
90 dB |
90 dB |
90 dB |
90 dB |
| Rated input (100 V) |
30 W |
30 W |
30 W |
30 W |
||
| Tappings (100 V) |
100 V : 330 Ω (30 W) / 1 kΩ (10 W) / 3.3 kΩ (3 W) / 10 kΩ (1 W) 70 V : 170 Ω (30 W) / 330 Ω (15 W) / 1 kΩ (5 W) / 3.3 kΩ (1.5 W) / 10 kΩ (0.5 W) |
100 V : 330 Ω (30 W) / 1 kΩ (10 W) / 3.3 kΩ (3 W) / 10 kΩ (1 W) 70 V : 170 Ω (30 W) / 330 Ω (15 W) / 1 kΩ (5 W) / 3.3 kΩ (1.5 W) / 10 kΩ (0.5 W) |
100 V : 330 Ω (30 W) / 1 kΩ (10 W) / 3.3 kΩ (3 W) / 10 kΩ (1 W) 70 V : 170 Ω (30 W) / 330 Ω (15 W) / 1 kΩ (5 W) / 3.3 kΩ (1.5 W) / 10 kΩ (0.5 W) |
100 V : 330 Ω (30 W) / 1 kΩ (10 W) / 3.3 kΩ (3 W) / 10 kΩ (1 W) 70 V : 170 Ω (30 W) / 330 Ω (15 W) / 1 kΩ (5 W) / 3.3 kΩ (1.5 W) / 10 kΩ (0.5 W) |
||
| Speaker component |
Low: 13 cm cone-type, High: 2.5 cm balanced dome-type |
Low: 13 cm cone-type, High: 2.5 cm balanced dome-type |
Low: 13 cm cone-type, High: 2.5 cm balanced dome-type |
Low: 13 cm cone-type, High: 2.5 cm balanced dome-type |
Low: 13 cm cone-type, High: 2.5 cm balanced dome-type |
Low: 13 cm cone-type, High: 2.5 cm balanced dome-type |
| Operating temperature |
-10 °C to +50 °C ( 14 °F to 122 °F) |
|||||
| Finish |
HIPS resin, off-white (RAL 9010 or equivalent) |
HIPS resin, black (RAL 9011 or equivalent) |
HIPS resin, black (RAL 9011 or equivalent) |
HIPS resin, black (RAL 9011 or equivalent) |
HIPS resin, off-white (RAL 9010 or equivalent) |
HIPS resin, off-white (RAL 9010 or equivalent) |
| Dimensions |
162 x 250 x 161 mm (W x H x D) |
162 x 250 x 161 mm (W x H x D) |
162 x 250 x 161 mm (W x H x D) |
162 x 250 x 161 mm (W x H x D) |
162 x 250 x 161 mm (W x H x D) |
162 x 250 x 161 mm (W x H x D) |
| Weight |
3.6 kg |
3.1 kg |
3.6 kg |
3.6 kg |
3.1 kg |
3.6 kg |
| Crossover frequency |
2 kHz |
2 kHz |
2 kHz |
2 kHz |
2 kHz |
2 kHz |
| Rated input (low impedance) |
50 W (continuous pink noise), 150 W (continuous program) |
50 W (continuous pink noise), 150 W (continuous program) in 8Ω mode |
50 W (continuous pink noise), 150 W (continuous program) |
50 W (continuous pink noise), 150 W (continuous program) in 8Ω mode |
||
| Rated impedance |
8 Ω |
8 Ω |
8 Ω |
8 Ω |
