H-3WP
Design Speakers

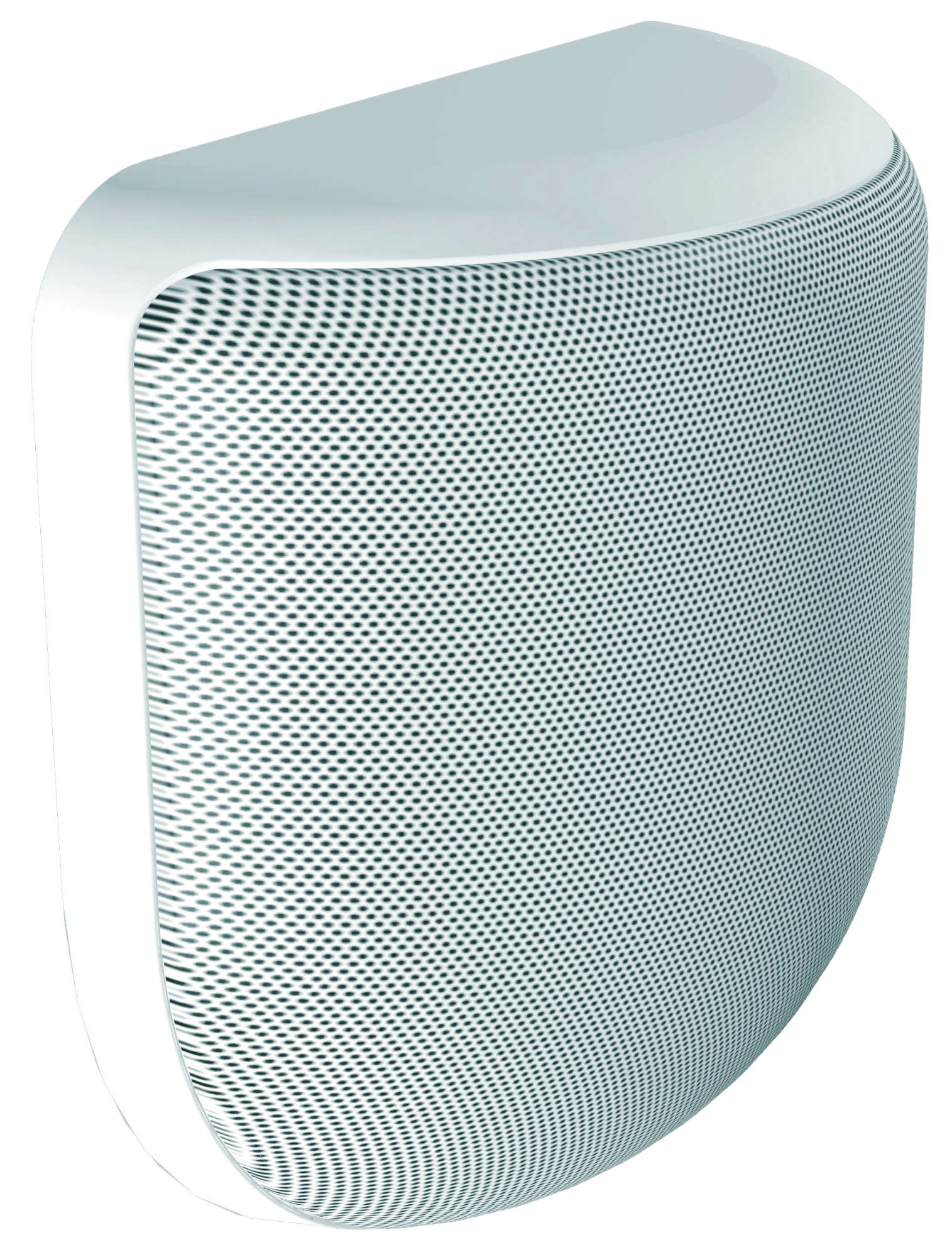

The H-3WP is a wall-mountable, outdoor 2-way speaker that provides horizontally-wide dispersion.
- 2-way design speaker
- Dome tweeters and neodymium magnet cone woofers
- Quality audio between the speakers as well as directly in front of each speaker unit
- 180° coverage pattern, eliminating dead audio spaces
- Either low impedance (8 Ω / 16 Ω) or high impedance (70 V / 100 V)
- Easy unobtrusive installation at above head-height
- Fire-resistant ABS according to UL94: V-0
- Weatherproof
- Specifications
- Application examples
- Tender text
- Downloads
Specifications
Specifications for product:
| H-3WP | H-3 | H-3WP | HB-1 | |
|---|---|---|---|---|
| Frequency response |
100 Hz - 20 kHz |
100 Hz - 20 kHz |
100 Hz - 20 kHz |
45 Hz - 200 Hz |
| Sensitivity (1 W, 1 m) |
89 dB |
89 dB |
89 dB |
91 dB |
| Rated input (100 V) |
30 W |
30 W |
30 W |
|
| Tappings (100 V) |
30 / 15 / 7.5 W (100 V), 30 / 15 / 7.5 / 3.75 W (70 V) |
30 / 15 / 7.5 W (100 V), 30 / 15 / 7.5 / 3.75 W (70 V) |
30 / 15 / 7.5 W (100 V), 30 / 15 / 7.5 / 3.75 W (70 V) |
|
| Rated input (low impedance) |
150 W (continuous program, 8 Ohm), 50 W (continuous pink noise, 8 Ohm) |
150 W (continuous program, 8 Ohm), 50 W (continuous pink noise, 8 Ohm) |
150 W (continuous program, 8 Ohm), 50 W (continuous pink noise, 8 Ohm) |
240 W (continuous program), 80 W (continuous pink noise) |
| Rated impedance |
8 Ω, 16 Ω |
8 Ω, 16 Ω |
8 Ω, 16 Ω |
8 Ω |
| Speaker component |
Low: 10 cm cone-type x 2, High: 2.5cm dome-type (neodymium magnet) |
Low: 10 cm cone-type x 2, High: 2.5cm dome-type (neodymium magnet) |
Low: 10 cm cone-type x 2, High: 2.5cm dome-type (neodymium magnet) |
20 cm cone-speaker |
| Finish |
ABS resin, signal white (RAL 9003 or equivalent) |
ABS resin, signal white (RAL 9003 or equivalent) |
ABS resin, signal white (RAL 9003 or equivalent) |
Steel plate, signal white (RAL 9003 or equivalent) |
| Dimensions |
295 x 318 x 129 mm (W x H x D) |
295 x 318 x 129 mm (W x H x D) |
295 x 318 x 129 mm (W x H x D) |
430 x 544 x 135 mm (W x H x D) |
| Weight |
3.3 kg |
3.3 kg |
3.3 kg |
11 kg |
| Crossover frequency |
4 kHz |
4 kHz |
4 kHz |
