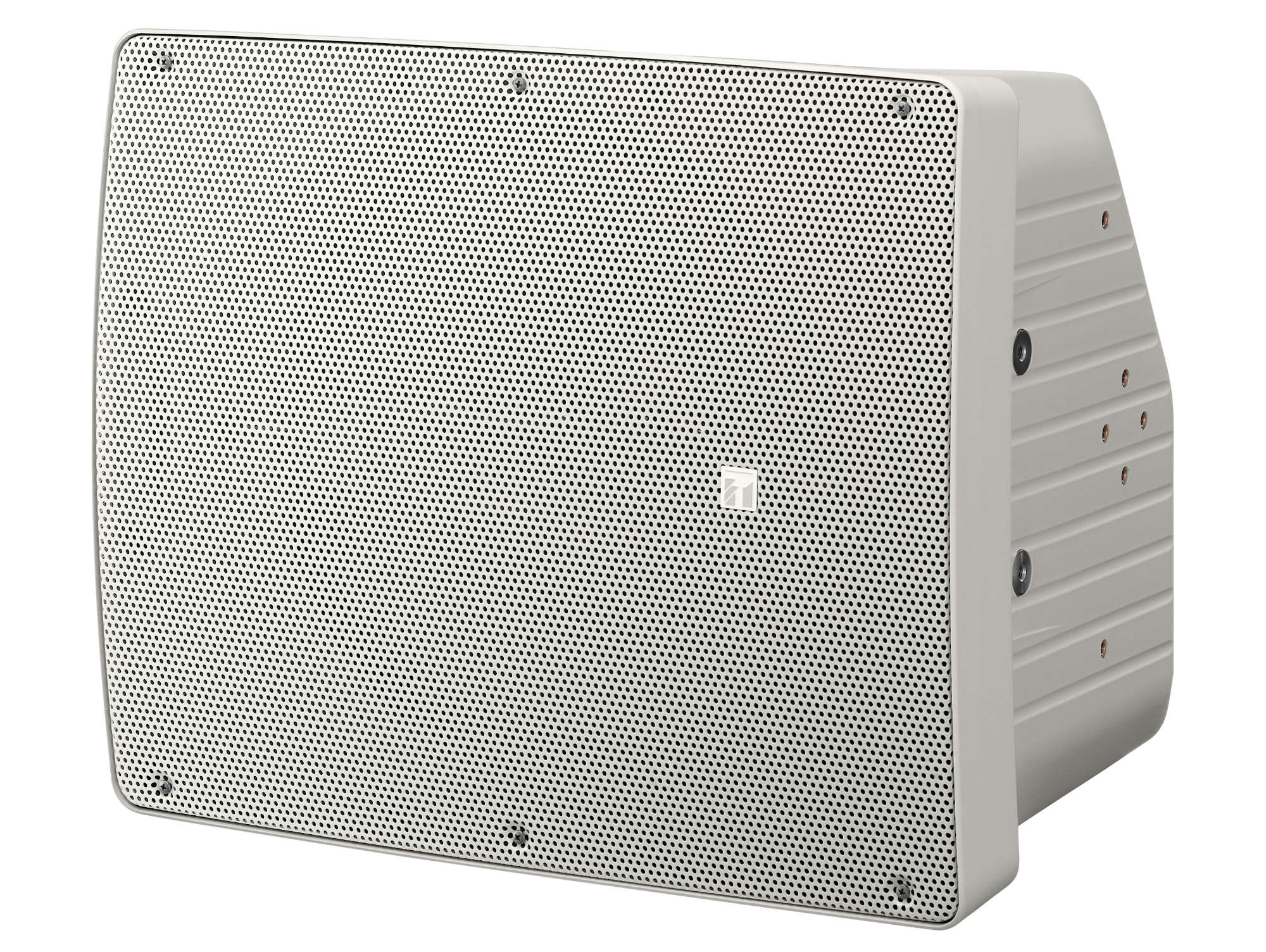

HS-150W

HS-150W

Coaxial Array

One of the most difficult speaker requirements to satisfy is a cost-effective mid-size speaker system that offers high quality sound no matter what the application. TOA HS-Series speakers are equipped with narrow-directivity control (90° horizontal × 40° vertical). This useful feature allows tailoring the speaker's dispersion characteristics to better suit the acoustic environment in which it is installed. The versatile HS-Series is compatible for use with 100V/70V lines for distributed applications. The HS-Series speakers are exceptional in offering useful features at an attractive price.

  • 15“ LF speaker
  • Well-controlled sound coverage: 90° horizontal x 40° vertical
  • Easy to carry and easy to install, with handle for easy transportability
  • Low impedance version
  • Twin input terminal connections (Speakon® and screw terminals) for fixed and mobile installation
  • Size and weight have been reduced thanks to the use of the array tweeter
  • Can be used as a floor monitor



Brochure
  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
HS-150W HS-1200BT HS-1200WT HS-120B HS-120W HS-1500BT HS-1500WT HS-150B
Frequency response

70 Hz - 20 kHz

70 Hz - 20 kHz

70 Hz - 20 kHz

80 Hz - 20 kHz

80 Hz - 20 kHz

60 Hz - 20 kHz

60 Hz - 20 kHz

70 Hz - 20 kHz
Sensitivity (1 W, 1 m)

98 dB

97 dB

97 dB

97 dB

97 dB

98 dB

98 dB

98 dB
Rated input (low impedance)

Continuous pink noise: 100 W
Continuous program: 300 W

Continuous pink noise: 100 W
Continuous program: 300 W

Continuous pink noise: 100 W
Continuous program: 300 W

Continuous pink noise: 100 W
Continuous program: 300 W

Continuous pink noise: 100 W
Continuous program: 300 W

Continuous pink noise: 100 W
Continuous program: 300 W

Continuous pink noise: 100 W
Continuous program: 300 W

Continuous pink noise: 100 W
Continuous program: 300 W
Rated impedance

8 Ω

8 Ω

8 Ω

8 Ω

8 Ω

8 Ω

8 Ω

8 Ω
Speaker component

38 cm cone-type, balanced dome-type x 6

30 cm cone-type, balanced dome-type x 6

30 cm cone-type, balanced dome-type x 6

30 cm cone-type, balanced dome-type x 6

30 cm cone-type, balanced dome-type x 6

38 cm cone-type, balanced dome-type x 6

38 cm cone-type, balanced dome-type x 6

38 cm cone-type, balanced dome-type x 6
Operating temperature

-10 °C to +50 °C

-10 °C to +50 °C

-10 °C to +50 °C

-10 °C to +50 °C

-10 °C to +50 °C

-10 °C to +50 °C

-10 °C to +50 °C

-10 °C to +50 °C
Finish

Polypropylene resin, off-white (RAL 9010 or equivalent)

Polypropylene resin, black (RAL 9011 or equivalent)

Polypropylene resin, off-white (RAL 9010 or equivalent)

Polypropylene resin, black (RAL 9011 or equivalent)

Polypropylene resin, off-white (RAL 9010 or equivalent)

Polypropylene resin, black (RAL 9011 or equivalent)

Polypropylene resin, off-white (RAL 9010 or equivalent)

Polypropylene resin, black (RAL 9011 or equivalent)
Dimensions

451 x 560 x 400 mm (W x H x D)

361 x 448 x 320 mm (W x H x D)

361 x 448 x 320 mm (W x H x D)

361 x 448 x 320 mm (W x H x D)

361 x 448 x 320 mm (W x H x D)

451 x 560 x 400 mm (W x H x D)

451 x 560 x 400 mm (W x H x D)

451 x 560 x 400 mm (W x H x D)
Weight

12 kg

10 kg

10 kg

8.5 kg

8.5 kg

14 kg

14 kg

12 kg
Rated input (100 V)

60 W

60 W

60 W

60 W
Tappings (100 V)

 8 Ohm,
100 V line: 170 Ohm (60 W), 330 Ohm (30 W), 670 Ohm (15 W),
70 V line: 83 Ohm (60 W), 170 Ohm (30 W), 330 Ohm (15 W), 670 Ohm (7.5 W)

 8 Ohm,
100 V line: 170 Ohm (60 W), 330 Ohm (30 W), 670 Ohm (15 W),
70 V line: 83 Ohm (60 W), 170 Ohm (30 W), 330 Ohm (15 W), 670 Ohm (7.5 W)

8 Ohm,
100 V line: 170 Ohm (60 W), 330 Ohm (30 W), 670 Ohm (15 W),
70 V line: 83 Ohm (60 W), 170 Ohm (30 W), 330 Ohm (15 W), 670 Ohm (7.5 W)

8 Ohm,
100 V line: 170 Ohm (60 W), 330 Ohm (30 W), 670 Ohm (15 W),
70 V line: 83 Ohm (60 W), 170 Ohm (30 W), 330 Ohm (15 W), 670 Ohm (7.5 W)
