Specifications

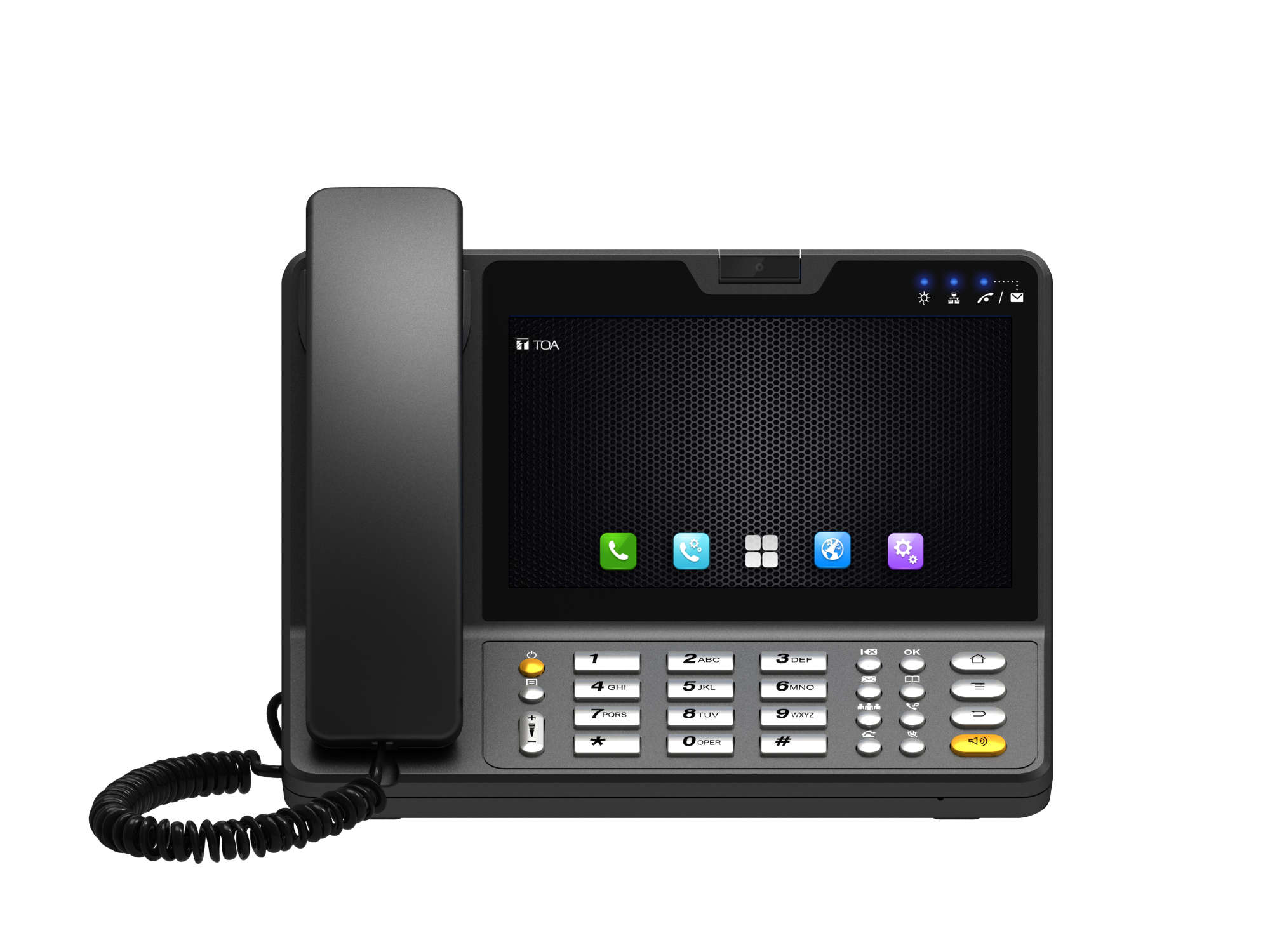

Specifications for product:
| N-SP80MS1 | N-8600MS | N-8610RM | |
|---|---|---|---|
| Power source |
PoE / 12 V DC |
Power supply device that complies with IEEE802.3af standard or 12 V DC (supplied from the AC Adapter (option) |
Power supply device that complies with IEEE802.3af standard or 12 V DC (supplied from the AC Adapter (option) |
| Power / current consumption |
12 W (max.) |
3 W (max.) |
Use of the AC Adapter (12 V DC): 4 W, 8.5 W (when connecting 4 RM-210 Key Extension Units) |
| Network protocol |
SIP RFC3261, TCP/UDP/IP, PPPOE, RTP/RTCP |
TCP/IP, UDP, ARP, ICMP, HTTP, RTP, IGMP |
TCP/IP, UDP, ARP, ICMP, HTTP, RTP, IGMP |
| Display |
7-inch capacitive touch screen TFT LCD, 800 x 480 pixels, 16:9 wide screen aspect ratio |
||
| Controls |
LCD Menu Configuration,TR069, WebUI |
||
| Operating temperature |
0 °C to +40 °C (32 °F to 104 °F) |
0 °C to +40 °C |
0 °C to +40 °C |
| Finish |
ABS resin, black |
ABS resin, grey |
ABS resin, bluish grey (PANTONE 538 or equivalent) |
| Dimensions |
240 x 213 x 120 mm (W x H x D) |
148 x 208 x 70.5 mm (W x H x D) |
190 x 76.5 x 215 mm (W x H x D) |
| Weight |
1.4 kg |
0.77 kg |
0.7 kg |
| Network |
Interface: Dual switched 10/100Mbps port, optional PoE, Wi-Fi |
10BASE-T/100BASE-TX (Automatic-Negotiation) |
10BASE-T/100BASE-TX (Automatic-Negotiation) |
| Interface section |
External Interface: USB 2.0, 3.5 mm headset jack |
||
| Frequency response |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
|
| Audio transmission system |
Unicast, Multicast |
Unicast, Multicast |
|
| Voice packet loss recovery |
silence insertion |
silence insertion |
|
| Audio delay time |
80 ms, 320 ms (controllable on the software) |
80 ms, 320 ms (controllable on the software) |
|
| Speech method |
Hands-free or handset conversation |
Hands-free conversation (use of goose-neck microphone) |
