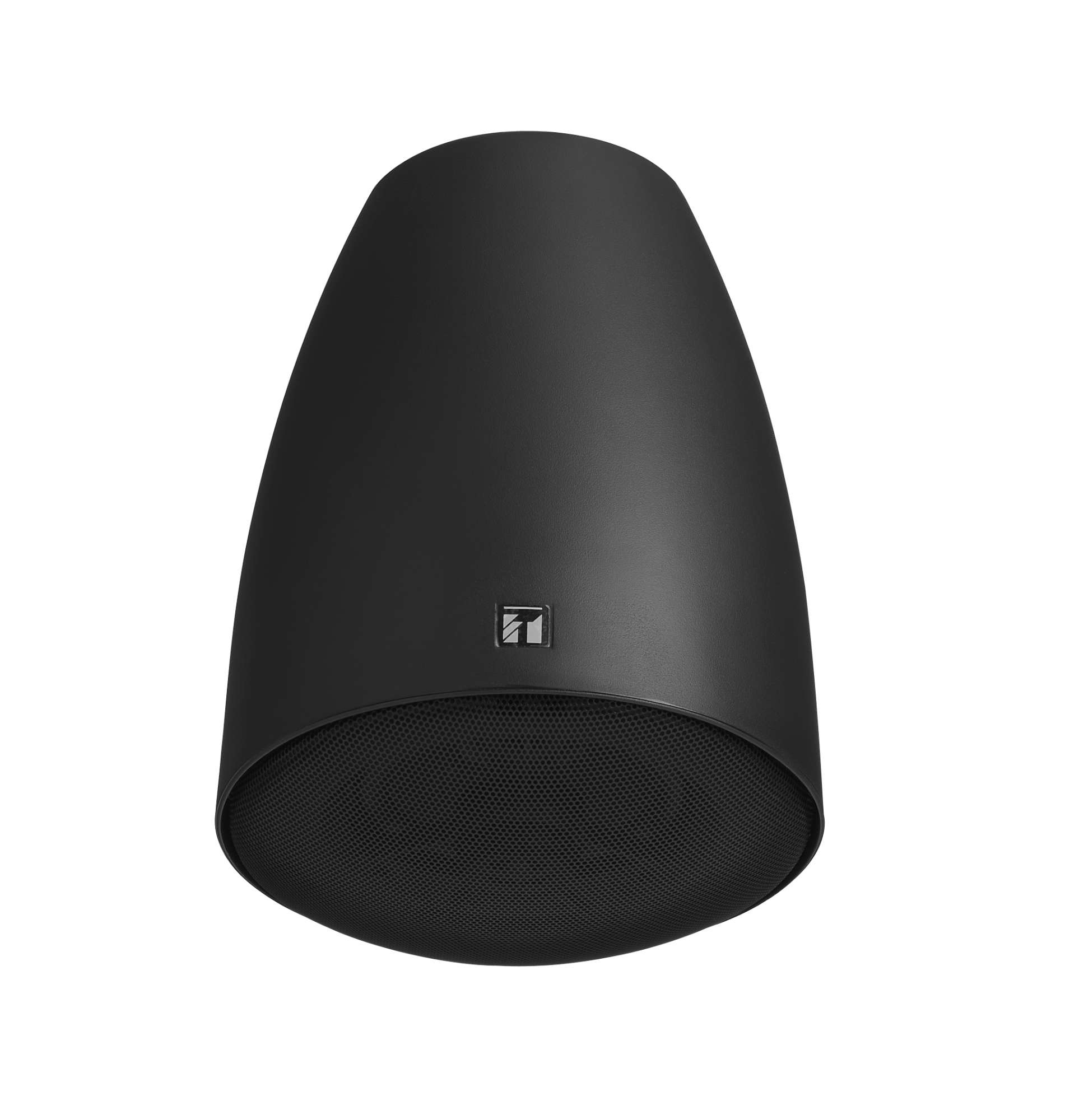

PE-604BU
Pendant Speakers
- Stylish design inspired by modern lighting fixtures
- Ideally suited for BGM & announcements
- 8 Ω and 25 V/70 V/100 V operation
- Input impedance is easily changed with a rotary switch on the top of the speaker
- With speaker cable, GRIPPLE® hanging wire & safety wire pre-attached, for faster, easier and more secure installation
- UL certified: UL Code: UL1480 UUMW, ULC-S541
- Bass-reflex type
- Specifications
- Application examples
- Downloads
Specifications
Specifications for product:
| PE-604BU | PE-304BU | PE-304WU | PE-604WU | |
|---|---|---|---|---|
| Frequency response |
110 Hz - 20 kHz |
95 Hz - 20 kHz |
95 Hz - 20 kHz |
110 Hz - 20 kHz |
| Sensitivity (1 W, 1 m) |
90 dB |
90 dB |
90 dB |
90 dB |
| Rated input (100 V) |
60 W |
30 W |
30 W |
60 W |
| Tappings (100 V) |
100V line: 170Ω (60W), 330Ω (30W), 670Ω (15W), 3.3kΩ (3W) 70V line: 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 3.3kΩ (1.5W) 25V line: 83Ω (7.5W), 170Ω (3.7W), 330Ω (1.9W), 70Ω (0.9W), 3.3kΩ (0.2W) Low impedance: 8Ω |
100V line: 330Ω (30W), 1kΩ (10W), 3.3kΩ (3W), 10kΩ (1.3W) 70V line: 170Ω (30W), 330Ω (15W), 1kΩ (5W), 3.3kΩ (1.5W), 10kΩ (0.6W) 25V line: 170Ω (3.7W), 330Ω (1.9W), 1kΩ (0.6W), 3.3kΩ (0.2W), 10kΩ (0.1W) Low impedance: 8Ω |
100V line: 330Ω (30W), 1kΩ (10W), 3.3kΩ (3W), 10kΩ (1.3W) 70V line: 170Ω (30W), 330Ω (15W), 1kΩ (5W), 3.3kΩ (1.5W), 10kΩ (0.6W) 25V line: 170Ω (3.7W), 330Ω (1.9W), 1kΩ (0.6W), 3.3kΩ (0.2W), 10kΩ (0.1W) Low impedance: 8Ω |
100V line: 170Ω (60W), 330Ω (30W), 670Ω (15W), 3.3kΩ (3W) 70V line: 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 3.3kΩ (1.5W) 25V line: 83Ω (7.5W), 170Ω (3.7W), 330Ω (1.9W), 70Ω (0.9W), 3.3kΩ (0.2W) Low impedance: 8Ω |
| Rated impedance |
8 Ω |
8 Ω |
8 Ω |
8 Ω |
| Speaker component |
12 cm cone-type + balanced-dome tweeter (coaxial) |
12 cm cone-type + balanced-dome tweeter (coaxial) |
12 cm cone-type + balanced-dome tweeter (coaxial) |
12 cm cone-type + balanced-dome tweeter (coaxial) |
| Finish |
HIPS resin, black (RAL 9011 or equivalent) |
HIPS resin, black (RAL 9011 or equivalent) |
HIPS resin, off-white (RAL 9010 or equivalent) |
HIPS resin, off-white (RAL 9010 or equivalent) |
| Dimensions |
186 x 275 mm (Ø x H) |
186 x 275 mm (Ø x H) |
186 x 275 mm (Ø x H) |
186 x 275 mm (Ø x H) |
| Weight |
2.9 kg |
2 kg |
2 kg |
2.9 kg |
