S4.04-HDX D5

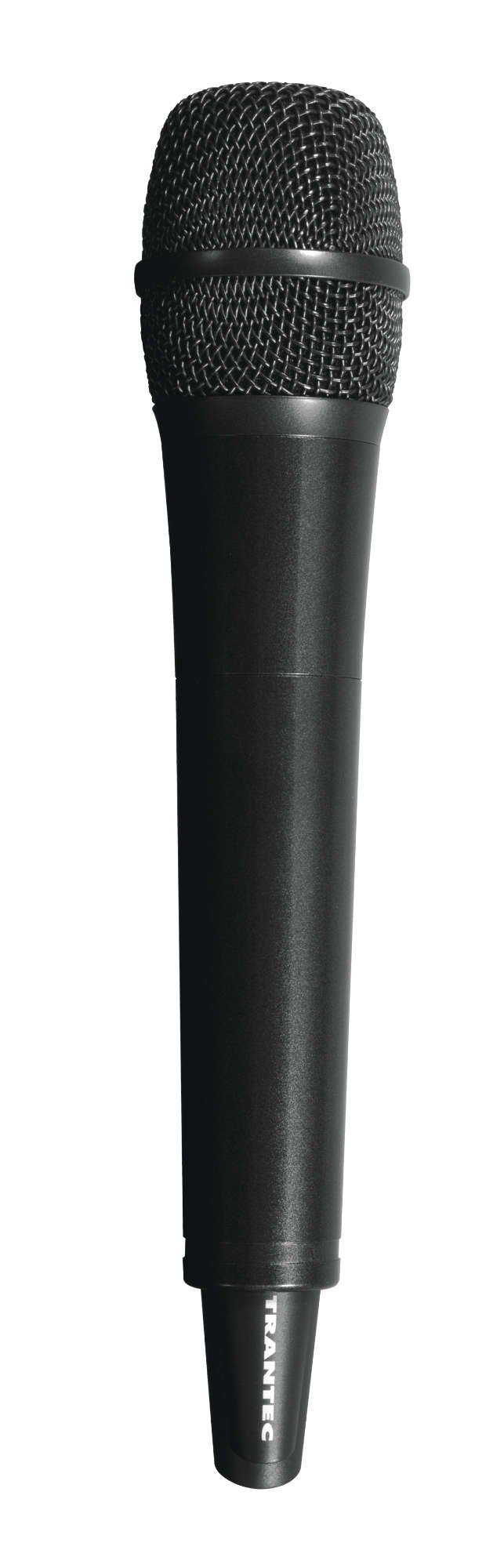

S4.04 Series Handheld Transmitter
The S4.04 Series 4 Channel Wireless System
- Dynamic microphone with cardioid pattern
- Single AA transmitter battery life of approx. 10 hours
- Specifications
- Application examples
- Downloads
Specifications
Specifications for product:
| S4.04-HDX D5 | |
|---|---|
| Power source |
Battery 1 AA size alkaline battery, 1.5 V |
| Frequency range |
863 - 865 MHz |
| Selectable frequencies |
4 |
| Microphone type |
Dynamic |
| Directivity |
Cardioid |
| Operating temperature |
-10°C ... +55°C |
| Finish |
Resin, black |
| Dimensions |
50 x 250 mm (Ø x D) |
| Weight |
245 g (with battery) |
| Battery life |
10 h |
| Simultaneous channels |
4 |
| AF response |
80 Hz - 15 kHz |
| RF output power |
10 mW |
| Max. input level |
140 dBSPL |
