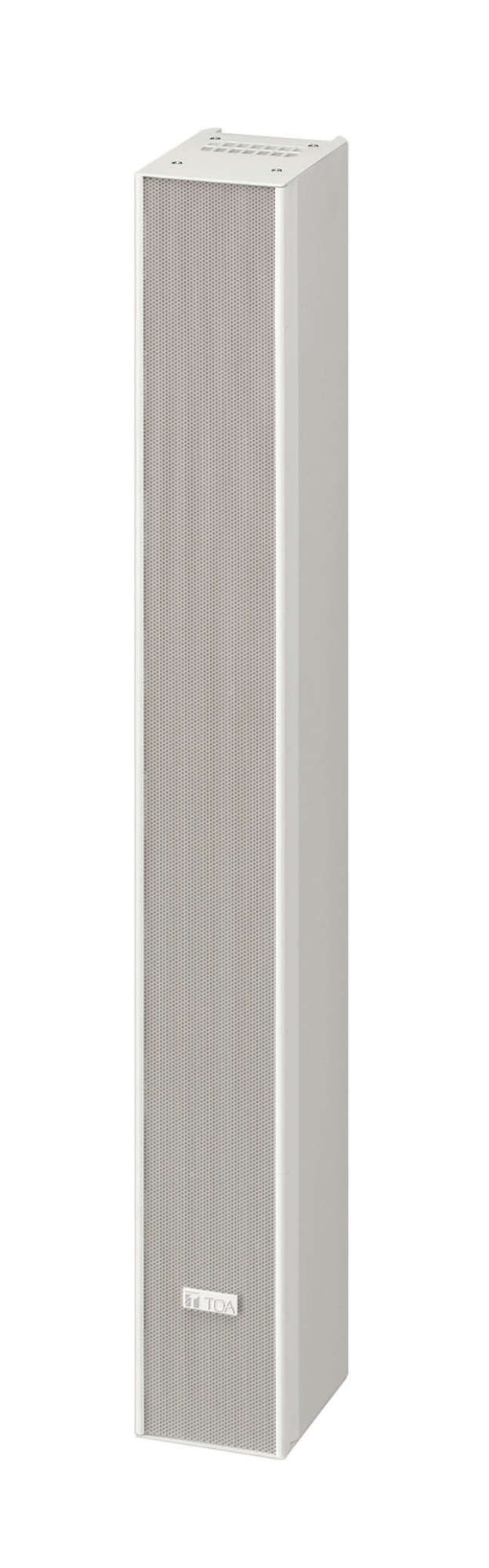

SR-H2L
Line Array
The straight SR-H2L Line array speaker forms a line sound source by the internal speaker units arrayed vertically in close proximity. It can be used for high-impedance applications with the installation of the optional MT-S0301 Matching transformer.
- Slim line array with excellent directivity
- Narrow 84 mm design allows speakers to fit in well with the interior decor of the venue
- Sync-Drive technology creates ideal linear sound source
- Clear sound with reduced attenuation over distance
- Reflection-free and feedback resistant
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| SR-H2L | SR-H2S | SR-H3L | SR-H3S | |
|---|---|---|---|---|
| Frequency response |
80 Hz - 18 kHz |
90 Hz - 17 kHz |
110 Hz - 18 kHz |
90 Hz - 17 kHz |
| Sensitivity (1 W, 1 m) |
92 dB |
90 dB |
95 dB |
92 dB |
| Rated input (low impedance) |
Continuous program: 180 W |
Continuous program: 180 W |
Continuous program: 360 W |
Continuous program: 360 W |
| Rated impedance |
8 Ω |
8 Ω |
8 Ω |
8 Ω |
| Speaker component |
7 cm cone-type x 9 |
7 cm cone-type x 9 |
7 cm cone-type x 16 |
7 cm cone-type x 16 |
| Finish |
MDF, off-white (RAL 9010 or equivalent) |
MDF, off-white (RAL 9010 or equivalent) |
MDF, off-white (RAL 9010 or equivalent) |
MDF, off-white (RAL 9010 or equivalent) |
| Dimensions |
84 x 668.4 x 115 mm (W x H x D) |
84 x 663.4 x 115 mm (W x H x D) |
84 x 1186.4 x 115 mm (W x H x D) |
84 x 1177.2 x 157 mm (W x H x D) |
| Weight |
4.4 kg |
4.2 kg |
7.6 kg |
7.9 kg |
