DISCONTINUED

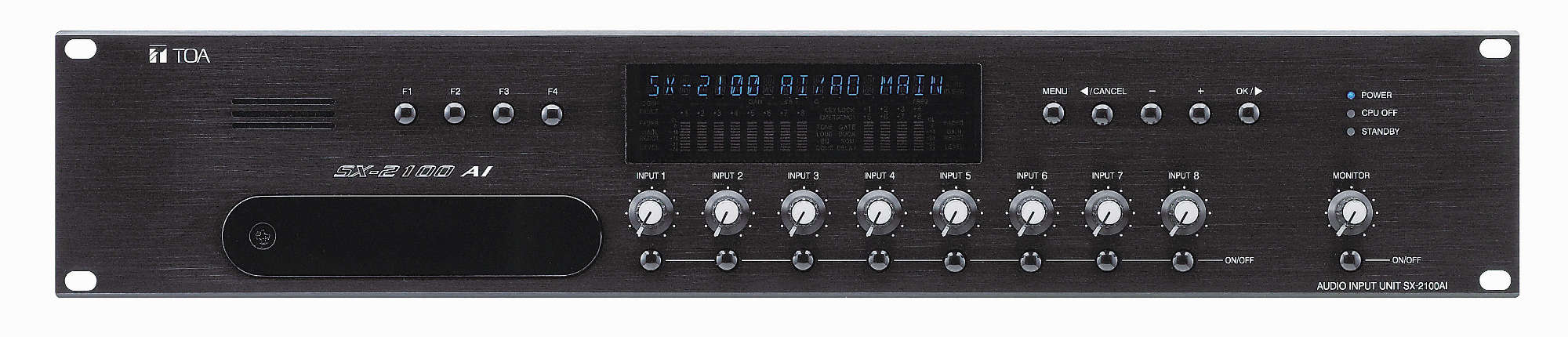

SX-2100AI

Audio Input Unit

The SX-2100AI is an audio input unit of the SX-2000 matrix system and can be mounted in an EIA equipment rack (2U size). Up to 8 units can be installed centralised or decentralised in a whole system. It features modular construction that allows it to handle from two to eight inputs per unit. Audio signals are transmitted digitally to the audio output units, but an analog audio bypass (1 channel) enables simultaneous all-zone calls for use in emergency situations in case of a CPU failure. Audio input levels are indicated on the level meters provided for each input channel. Volumes can be adjusted for each channel using the volume controls on the front panel or by the SX-2000 software. The volume controls can be locked. Any input channel can be monitored using the internal speaker. It is also equipped with 16 control inputs, and 16 control outputs. It is equipped with two power inputs, allowing for a redundant power system.

  • Audio input unit
  • Two to 8 audio inputs by different input modules per unit
  • Up to 8 units can be installed in a centralised or decentralised system
  • Audio input levels (post-fader levels) are indicated on the level meters provided for each input channel
  • Volumes can be adjusted for each channel using the volume controls on the front panel
  • Volume controls can be locked by the SX-2000 setting software
  • Channels can be monitored using the internal speaker
  • Two power inputs for redundant power system
  • Two LAN ports allow redundant system interconnections
  • The SX-2000 system requires Ethernet switches. For an EN54-16 compliant system, the certified IES-3000 series Ethernet switches are to be used
  • For an EN54-16 compliant system, the SX-2000 system is to be powered by VX-3000DS, VX-2000DS or VX-3150DS




  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
SX-2100AI
Power source

24 V DC operating range: 20 – 40 V DC, dual input

Frequency response

20 Hz - 20 kHz

Finish

Aluminium, black

Dimensions

482 x 88.4 x 349 mm (W x H x D)

Weight

7 kg

Current consumption

1.5 A

Input / Output

8 inputs, for up to 4 modules

Indicator

bargraph level meter per channel, Emergency, Fault, channel on/off
