TP-M15E
Horn Speakers

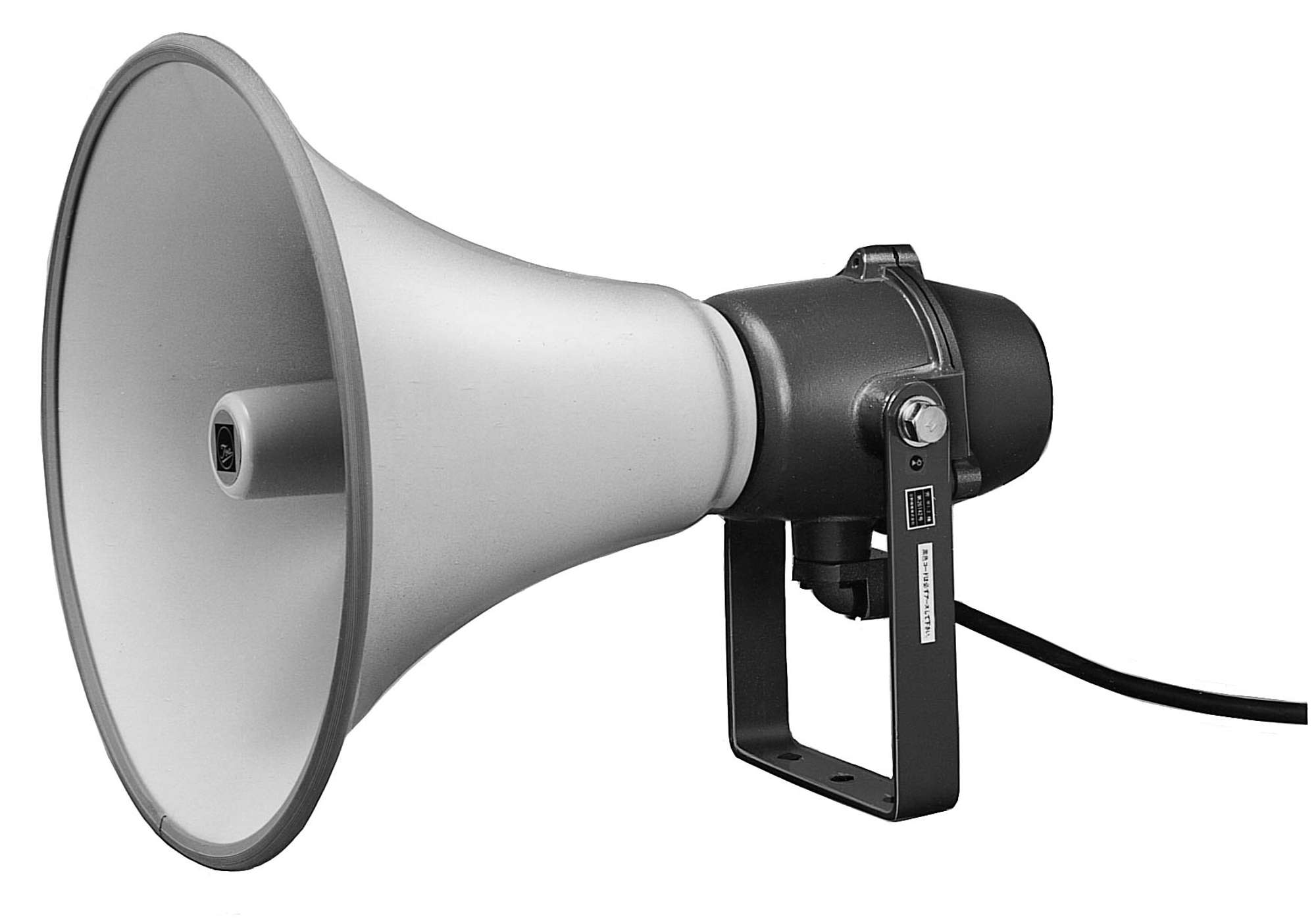

The TP-M15E Explosion-Proof Speaker provides added safety as to electrical operations, mechanical construction and temperature so as to prevent electrical equipment which do not generate sparks or heat that can ignite an explosive atmosphere under the condition of normal use from generating such sparks and heat.
- Explosion-proof according to category eG4 (increased safety)
- Aluminium horn
- Excellent frequency response
- High sound pressure level
- Mounting brackets are supplied for easy installation
- Specifications
- Application examples
- Tender text
- Downloads
Specifications
Specifications for product:
| TP-M15E | TP-M15D | |
|---|---|---|
| Frequency response |
300 Hz - 5.5 kHz |
350 Hz - 4.5 kHz |
| Sensitivity (1 W, 1 m) |
104 dB |
104 dB |
| Rated input (100 V) |
15 W |
15 W |
| Tappings (100 V) |
100V LINE: 670Ω (15W), 1kΩ (10W), 2kΩ (5W) |
100V LINE: 670Ω (15W), 1kΩ (10W), 2kΩ (5W) |
| Operating temperature |
-20°C to +40°C |
-20°C to +40°C |
| Finish |
silk grey (RAL7044 or equivalent), dark brown |
silk grey (RAL7044 or equivalent), dark brown |
| Dimensions |
392 x 475 mm (Ø x D) |
242 x 368 mm (Ø x D) |
| Weight |
4.9 kg |
4.3 kg |
