VM-300IS-EB

VM-300IS-EB

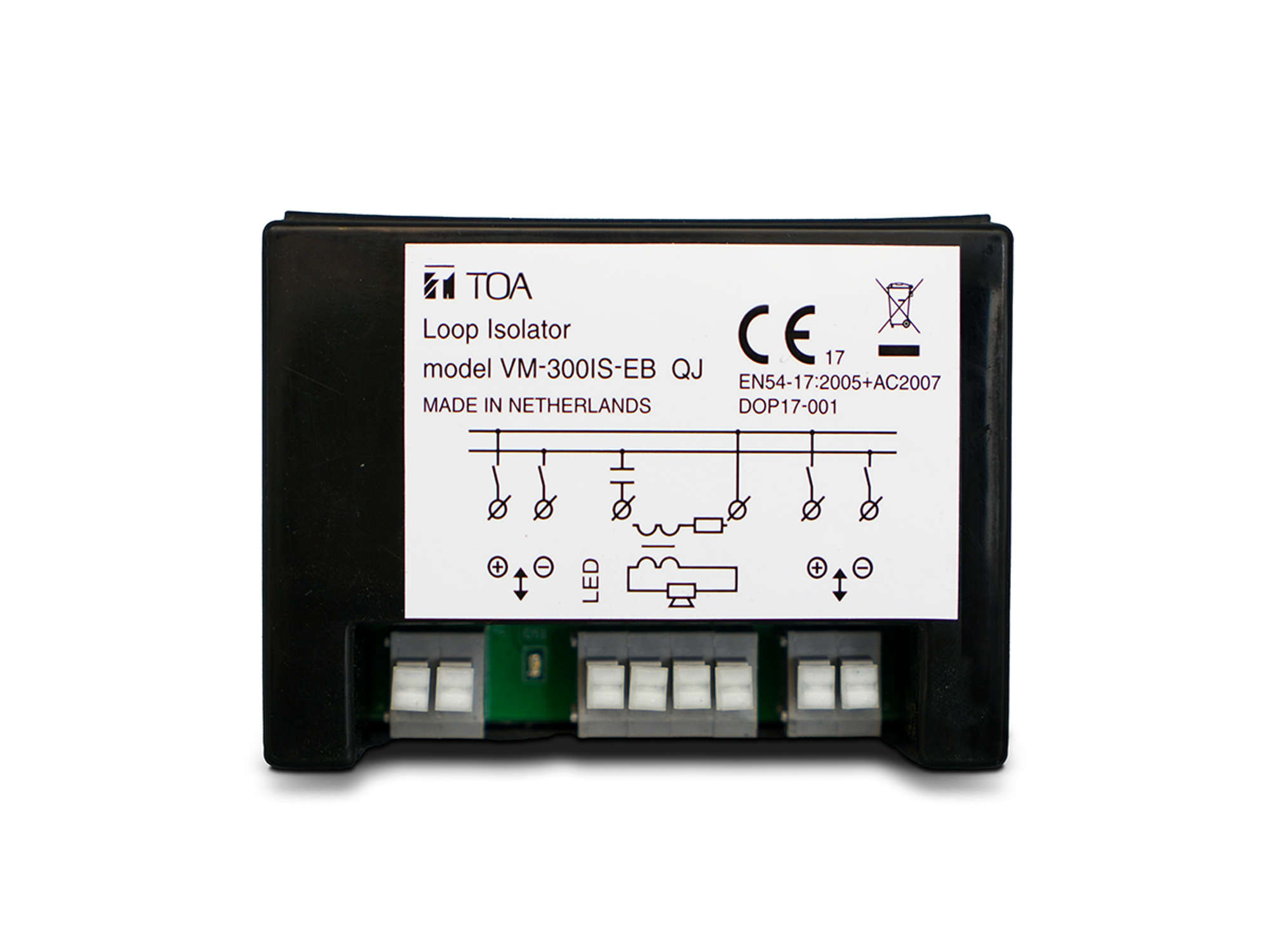

Loop Isolator Module

The loop isolator module isolates short circuits from the speaker line to prevent the entire line to fail. In this case it informs the loop monitor about that fault through the speaker line.

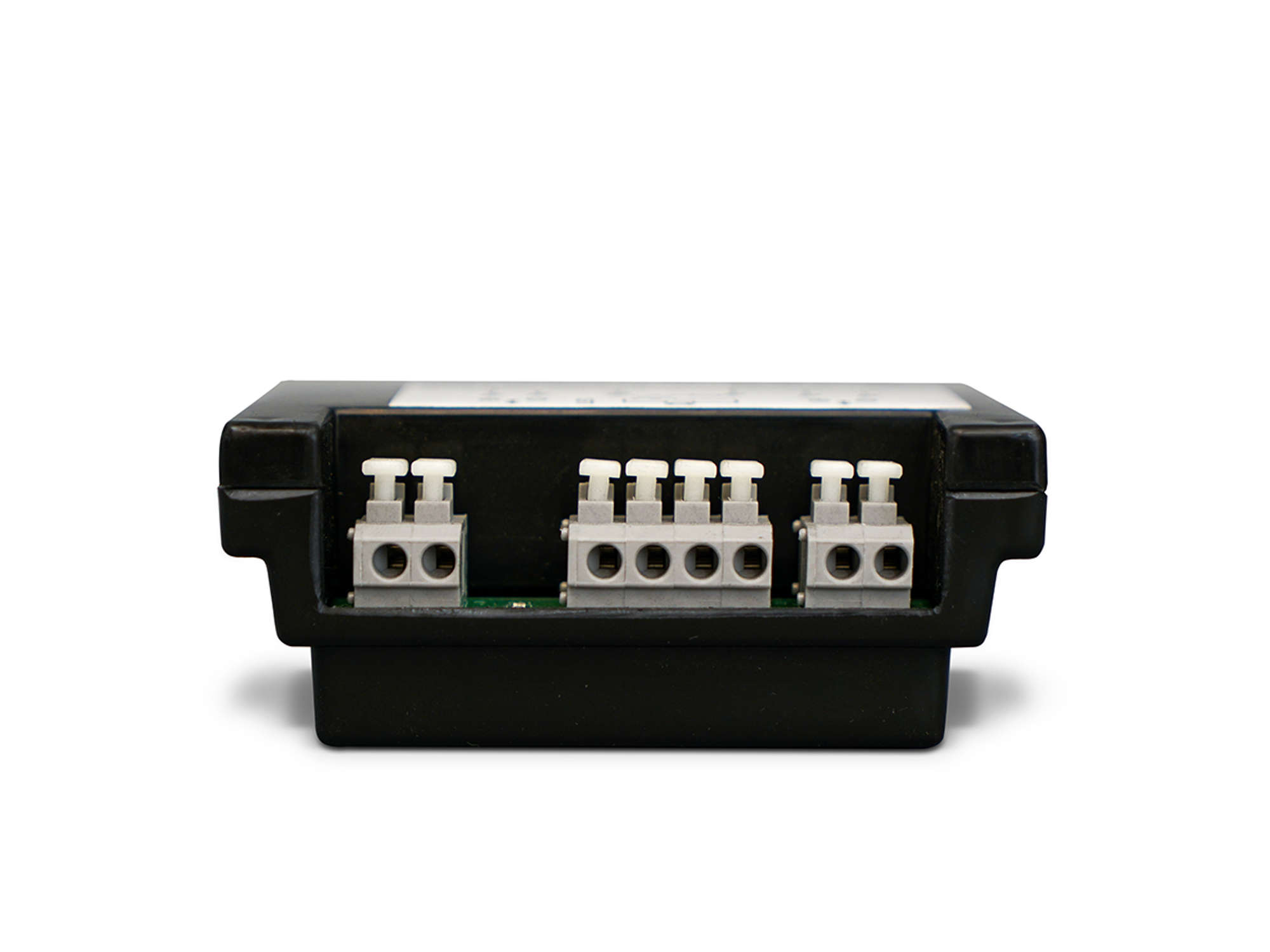

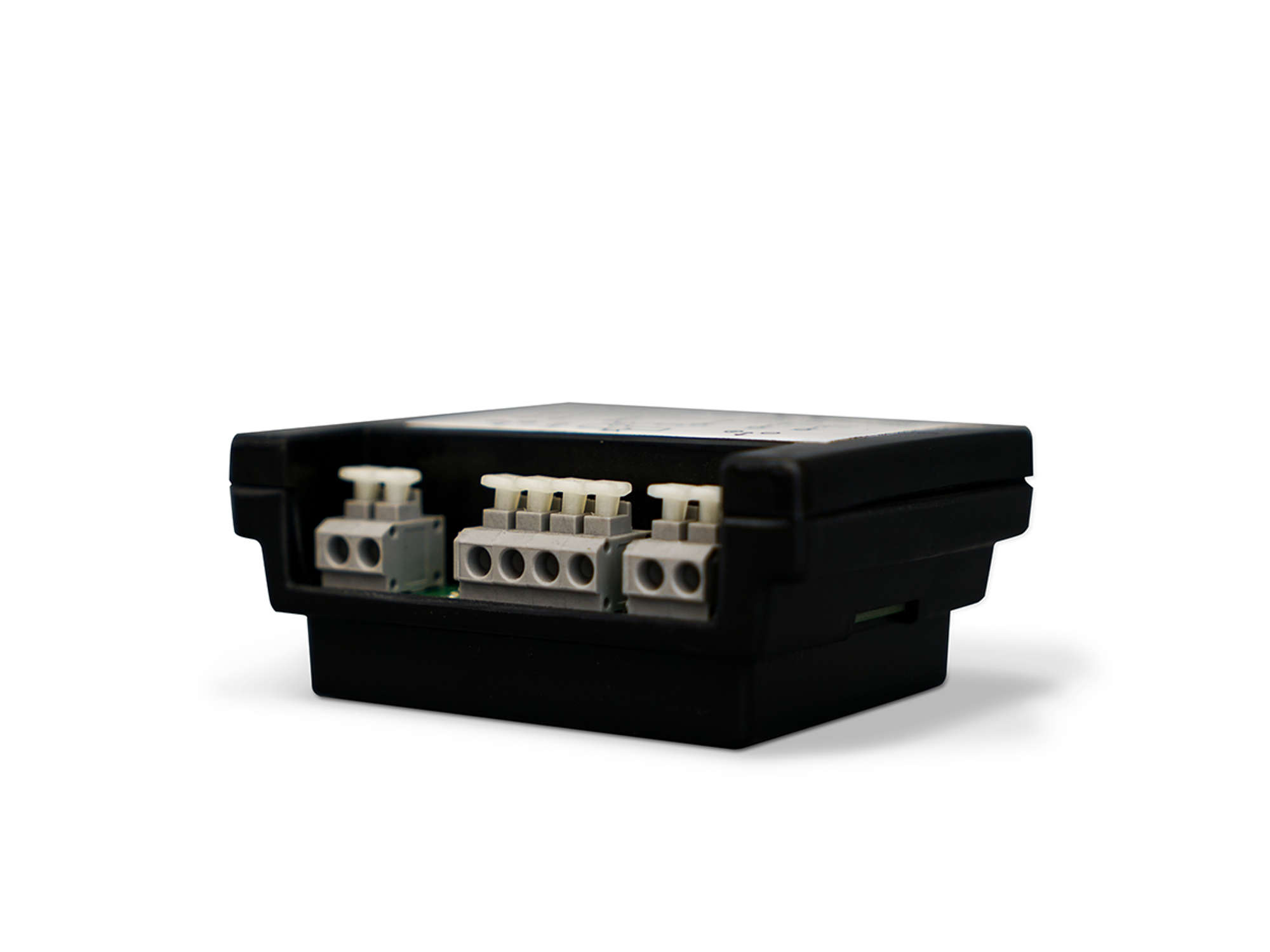

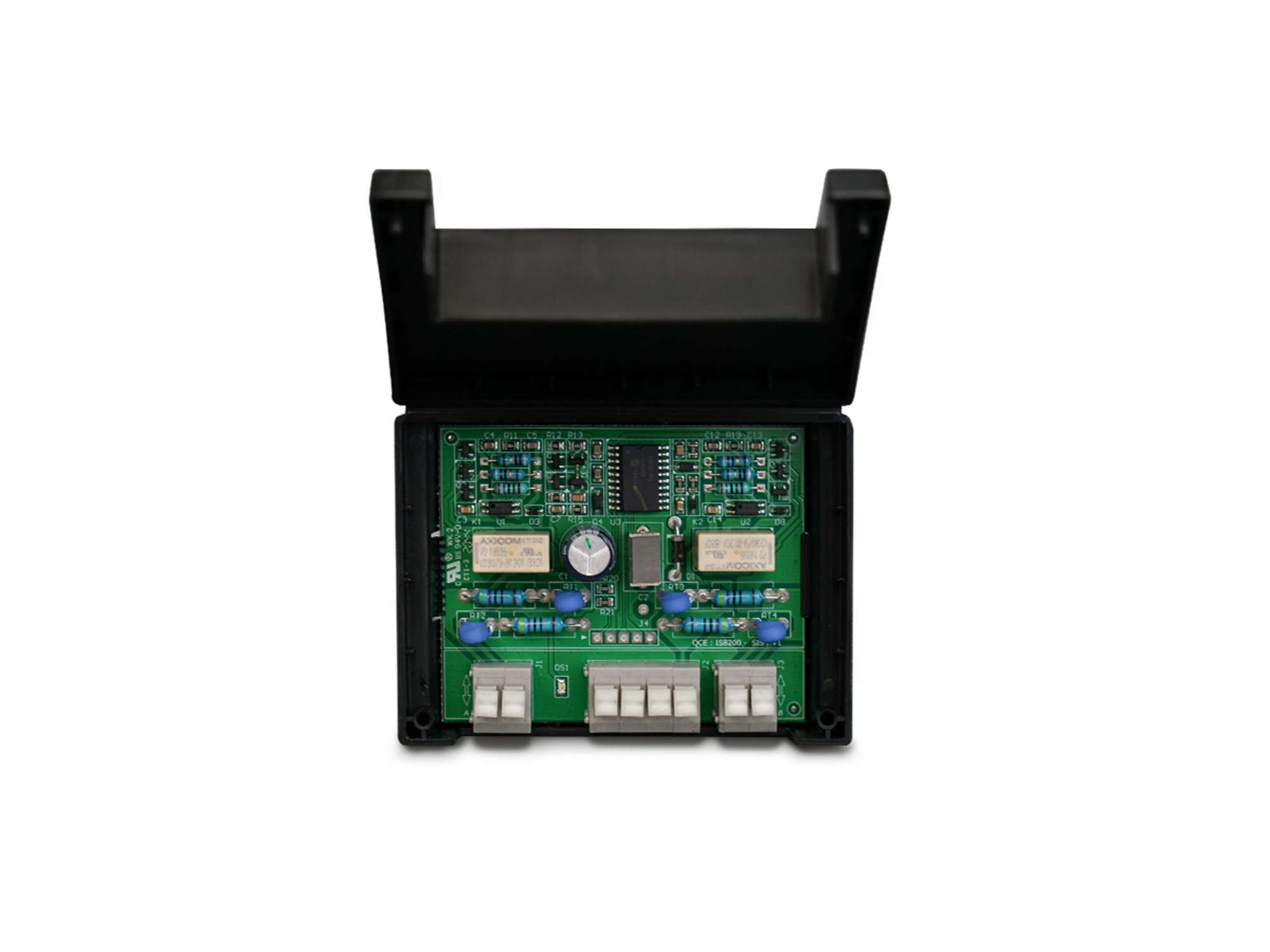

The isolator module is in a housing with cable clamps outside.



Brochure
  • Specifications
  • Downloads
Specifications
Specifications for product:
VM-300IS-EB
Power source

supplied from VM-300IM
Operating temperature

-10 to +55°C
Dimensions

88 x 60 x 34 mm (W x H x D)
Weight

100 g
Input / Output

loop in, loop out, speaker
Indicator

Status: OK / short at loop in / fault at loop out / initialise
