VP-3304

Digital Power Amplifier

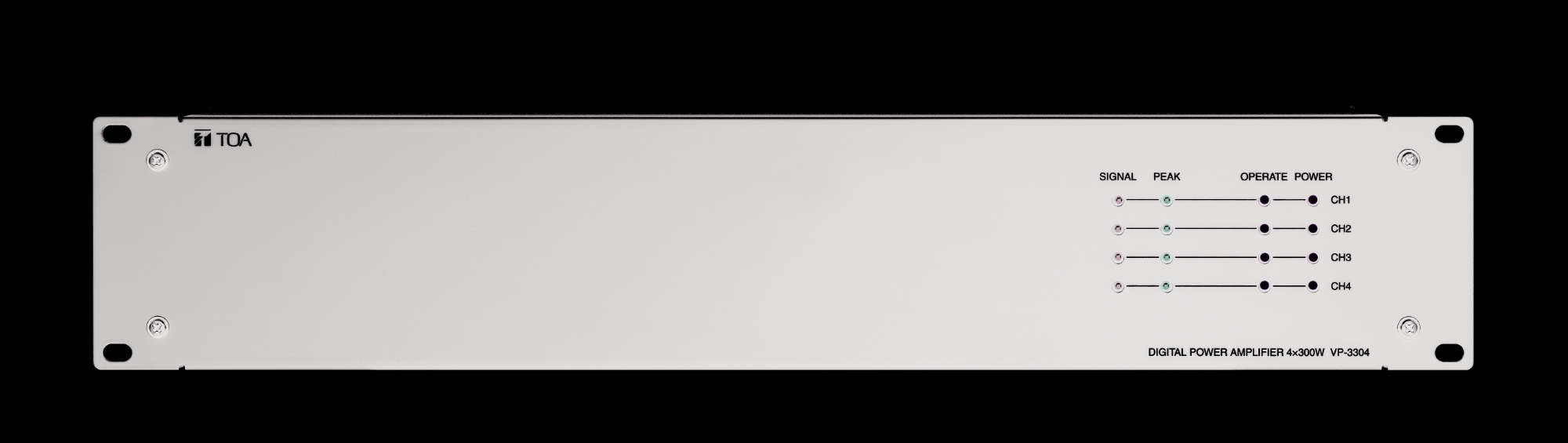

The VP-3304 is an Digital Power Amplifier used for the SX-2000 system. It is a 2U rack-mount unit equipped with 4 channels of class-D digital power amplifiers, which contribute to energy-saving and lightweight design. The VP-3304 also features a front-mounted LED indicator for operating status indication and stand-by mode to be set for reducing stand-by power consumption. It requires a dedicated power supply unit VX-3000DS.

System amplifier for SX-2000
3 different power configurations
150 W x 4 Channels (VP-3154)
300 W x 4 Channels (VP-3304)
500 W x 4 Channels (VP-3504)
Usable as zone or standby amplifier
Compact, lightweight and energy efficient
4 amplifier input modules are built-in
With BGM input ports
Usable with VX-3000DS or VX-3150DS-EB

Specifications
Application examples
Tender text
Downloads

Specifications

Specifications for product:

	VP-3304	VP-3154	VP-3504
Power source	31 V DC (operating range: 20 – 34 V DC), DC power in: M4 screw terminal	31 V DC (operating range: 20 – 34 V DC), DC power in: M4 screw terminal	31 V DC (operating range: 20 – 34 V DC), DC power in: M4 screw terminal
Frequency response	40 Hz - 16 kHz	40 Hz - 16 kHz	40 Hz - 16 kHz
Rated output	300 W x 4 (at 100 V line), 210 W x 4 (at 70 V line), 150 W x 4 (at 50 V line)	150 W x 4 (at 100 V line), 105 W x 4 (at 70 V line), 75 W x 4 (at 50 V line)	500 W x 4 (at 100 V line), 350 W x 4 (at 70 V line), 250 W x 4 (at 50 V line)
Finish	Steel plate, black	Steel plate, black	Steel plate, black
Dimensions	482 x 88.4 x 390 mm (W x H x D)	482 x 88.4 x 390 mm (W x H x D)	482 x 88.4 x 390 mm (W x H x D)
Weight	7.3 kg	7.3 kg	7.7 kg
Distortion	< 1 % (at 1 kHz, rated input/output)	< 1 % (at 1 kHz, rated input/output)	< 1 % (at 1 kHz, rated input/output)
Current consumption	9 A	6 A	13 A
S/N ratio	80 dB(A) (at 100 V line, A-weighted)	80 dB(A) (at 100 V line, A-weighted)	80 dB(A) (at 100 V line, A-weighted)
Inputs	PA link: 4 channels, RJ45 connector, BGM: 4 channels, removable terminal block (5 pins) BGM INPUT (H, C, E): -10 dB/0 dB (LINE, changeable), 22 kΩ, electronically balanced BGM MUTE (G, +): no-voltage make contact input,open voltage: 15 V DC, short-circuit current: 2 mA, Volume adjustment: 4 channels	PA link: 4 channels, RJ45 connector, BGM: 4 channels, removable terminal block (5 pins) BGM INPUT (H, C, E): -10 dB/0 dB (LINE, changeable), 22 kΩ, electronically balanced BGM MUTE (G, +): no-voltage make contact input,open voltage: 15 V DC, short-circuit current: 2 mA, Volume adjustment: 4 channels	PA link: 4 channels, RJ45 connector, BGM: 4 channels, removable terminal block (5 pins) BGM INPUT (H, C, E): -10 dB/0 dB (LINE, changeable), 22 kΩ, electronically balanced BGM MUTE (G, +): no-voltage make contact input,open voltage: 15 V DC, short-circuit current: 2 mA, Volume adjustment: 4 channels
Outputs	PA out (speaker line): removable terminal block (9 pins) x 1	PA out (speaker line): removable terminal block (9 pins) x 1	PA out (speaker line): removable terminal block (9 pins) x 1
Number of channels	4	4	4
Indicator	Power indicator x 4 (Green), Operate indicator x 4 (Green), Input signal indicator x 4 (Green), Peak signal indicator x 4 (Red)	Power indicator x 4 (Green), Operate indicator x 4 (Green), Input signal indicator x 4 (Green), Peak signal indicator x 4 (Red)	Power indicator x 4 (Green), Operate indicator x 4 (Green), Input signal indicator x 4 (Green), Peak signal indicator x 4 (Red)
