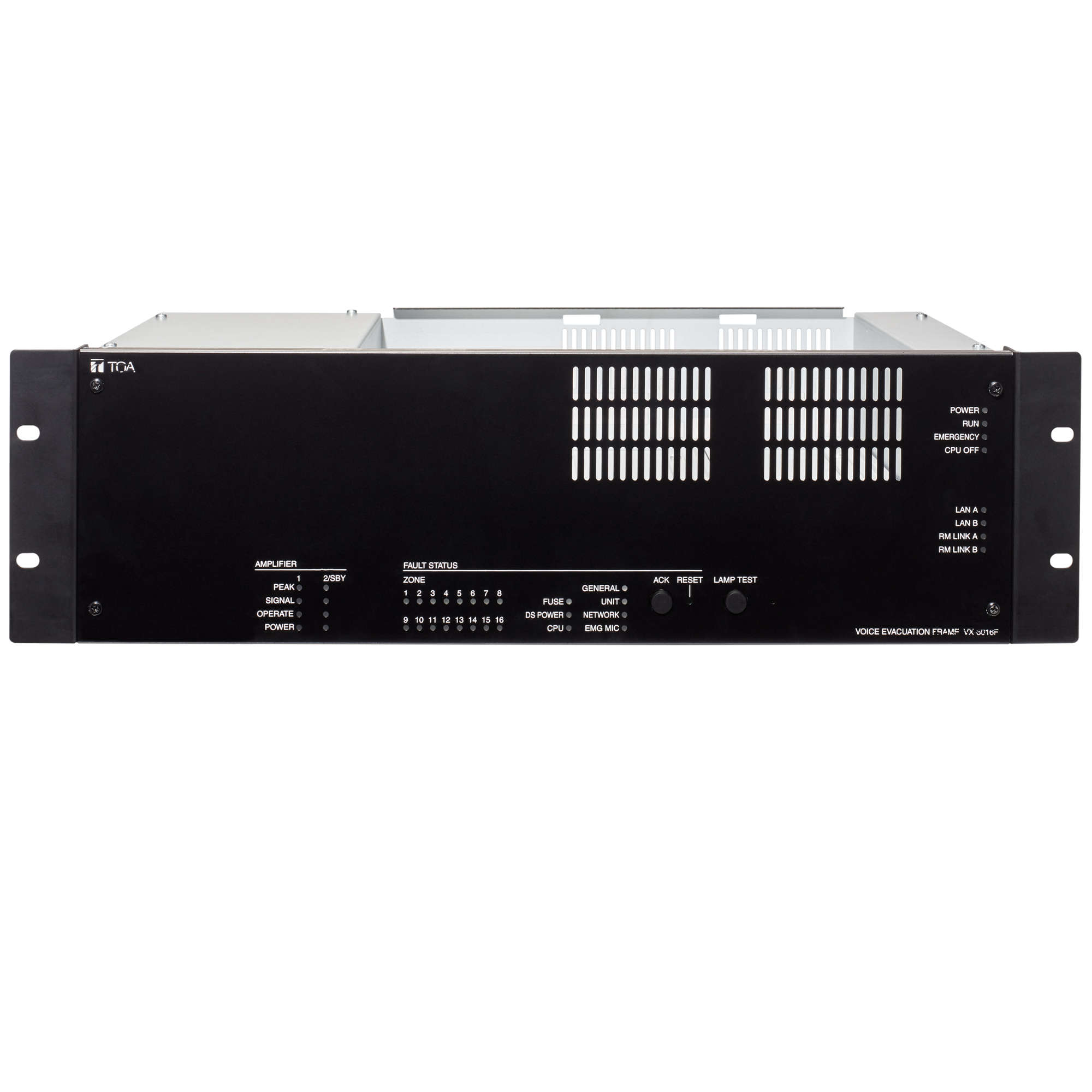

VX-3016F
Voice Alarm System Frame
The VX-3016F frame is one of three system managers of TOA's VX-3000 series rack-mount type public address and voice evacuation system certified according to the European Standard EN 54-16.
It provides 16 speaker line outputs/zones. Either one amplifier drives all 16 line outputs/zones or two amplifiers drive 8 line outputs/zones each. Up to three additional VX-3016F frames without amplifiers can be added to expand the number of zones of the version with one amplifier installed. The amplifier modules can be easily mounted and removed. Up to two power amplifier modules of different wattages can be mounted, of which the second one can either be used for the zones or as a standby amplifier. The standby amplifier, when mounted, can be shared among other VX-3000F units. Each amplifier channel has the following DSP functions: different filter types (PEQ, HPF, LPF, shelving, CD-horn EQ, notch), compressor and delay that enables appropriate acoustic adjustment for any broadcast area. The smart ANC function enables the control of ambient noise and is not affected by the audio signal it controls. Therefore, the sensor’s installation location is not critical. The monitoring of the speaker lines can be selected between impedance monitoring with selectable pilot tone or by end-of-line modules.
The VX-3016F has 4 balanced audio input terminals from microphone up to line level sensitivity, with phantom power selection for microphone use. The inputs can also be set for receiving an emergency broadcast from another VA system of higher priority and broadcast it under the condition of the emergency mode. Up to 8 remote microphones can be connected via RJ45 ports; two of which can be emergency microphones. The following DSP functions are available for each input channel: different filter types (PEQ, HPF, LPF, shelving) and compressor. Helpful features such as feedback suppressor or voice-controlled broadcast activation (VOX) enhance the usability of the system.
- 16 zones with up to 2 amplifier modules (1 or 2 amps for zones, or 1 amp for zones + 1 standby amp)
- Full VA and PA functionality
- All indications and controls according to EN 54-16
- Fault status indication for each speaker line
- Operation and audio signal status indication per amplifier
- 8 control outputs by open-collector-transistor and 16 by 5 A relays
- 16 standard and 2 voltage-controlled control inputs with monitoring
Discover our products in 3-D view – and project them via AR into any room and get 3-D all-round view in real time
How can I turn, enlarge, move the object?
Rotate /Turn: Hold left click and drag at the same time or on a touch screen please drag with one finger.
Zoom: To zoom in or out, please scroll with the mouse wheel or on a touch screen please work with pinch-to-zoom i.e. pull the object apart with 2 fingers to zoom in.
Move the entire object: Hold right-click and drag or on a touchscreen please drag with 2 fingers.
Project into my own space: Click AR (Augmented Reality) at the bottom right of the window. Now you can scan the QR code or simply open the link on your mobile device.
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| VX-3016F | VX-3004F | VX-3008F | |
|---|---|---|---|
| Power source |
31 V DC operating range: 20 – 40 V DC) |
31 V DC operating range: 20 – 40 V DC) |
31 V DC operating range: 20 – 40 V DC) |
| Power / current consumption |
max. 90 W at 31 VDC |
max. 85 W at 31 VDC |
max. 85 W at 31 VDC |
| Frequency response |
40 Hz - 20 kHz |
40 Hz - 20 kHz |
40 Hz - 20 kHz |
| Audio input |
4 balanced channels, nominal sensitivity between -60 dBV and -20 dBV, can be attenuated by potentiometer behind front panel, phantom power selectable |
4 balanced channels, nominal sensitivity between -60 dBV and -20 dBV, can be attenuated by potentiometer behind front panel, phantom power selectable |
4 balanced channels, nominal sensitivity between -60 dBV and -20 dBV, can be attenuated by potentiometer behind front panel, phantom power selectable |
| Control input |
16 (by contact) + 2 (by 24 VDC polarty change) |
16 (by contact) + 2 (by 24 VDC polarty change) |
16 (by contact) + 2 (by 24 VDC polarty change) |
| Control output |
Open collector: 8 + 3 (CPU OFF), Relay (125 VDC, 5 A): 16 |
Open collector: 8 + 3 (CPU OFF), Relay (125 VDC, 5 A): 8 |
Open collector: 8 + 3 (CPU OFF), Relay (125 VDC, 5 A): 8 |
| Operating temperature |
-5°C to +45°C |
-5°C to +45°C |
-5°C to +45°C |
| Finish |
Steel plate, black |
Steel plate, black |
Steel plate, black |
| Dimensions |
482 x 132.6 x 345 mm (W x H x D) |
482 x 132.6 x 345 mm (W x H x D) |
482 x 132.6 x 345 mm (W x H x D) |
| Weight |
7.9 kg |
7.6 kg |
7.9 kg |
| Distortion |
< 1 % (at 1 kHz) |
< 1 % (at 1 kHz) |
< 1 % (at 1 kHz) |
| S/N ratio |
60 dB(A) (or more) |
60 dB(A) (or more) |
60 dB(A) (or more) |
| Input / Output |
Speaker Output: 16 zones |
Speaker Output: 4 AB Zones |
Speaker Output: 8 zones |
| Indicator |
power, run, CPU off, LAN status, RM status |
power, run, CPU off, LAN status, RM status |
power, run, CPU off, LAN status, RM status |
| Connection |

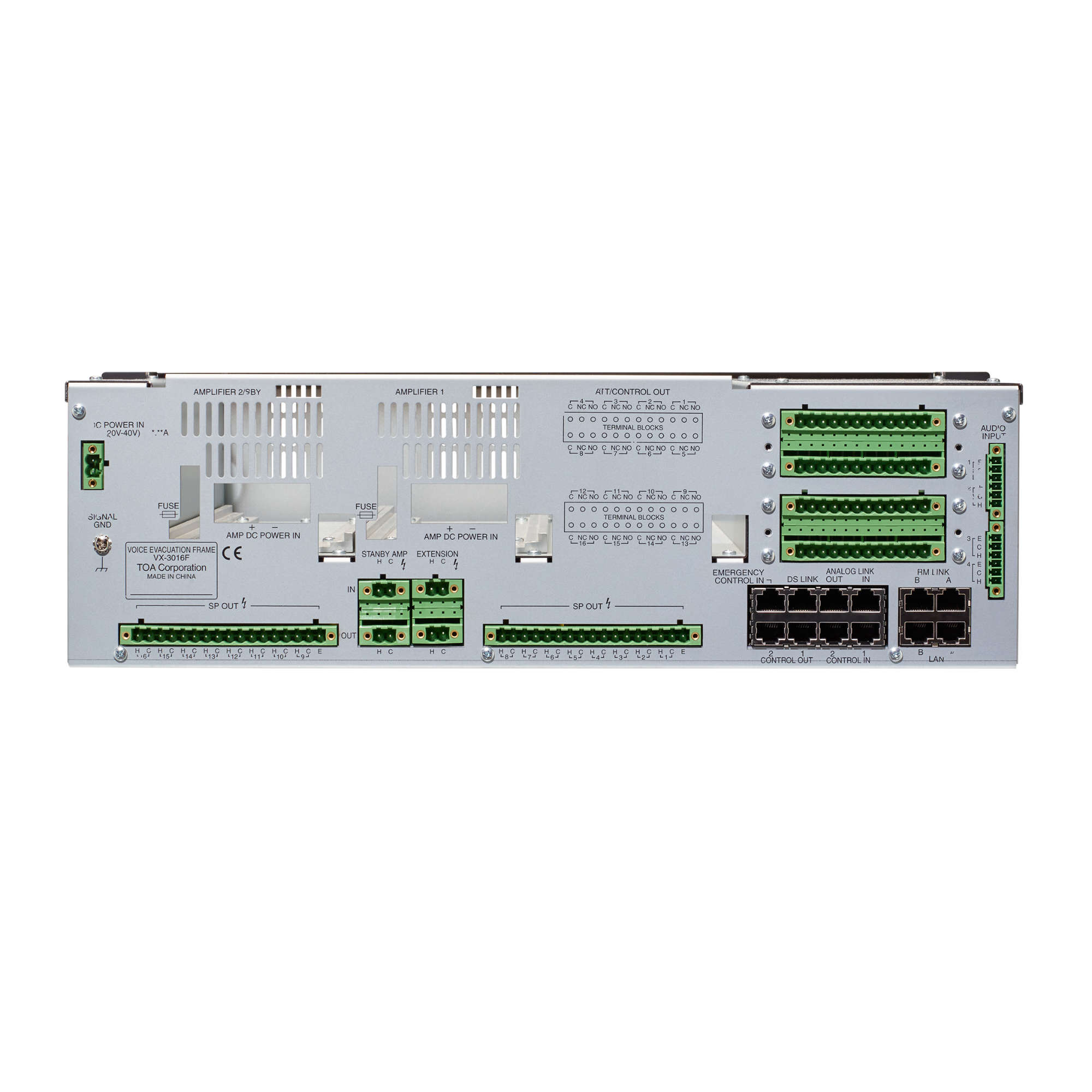

RJ45: control inputs x 2, control outputs (open collector) x 2, DS link x 1, remote microphones x 2, LAN x 2, analog link x 2 |
RJ45: control inputs x 2, control outputs (open collector) x 2, DS link x 1, remote microphones x 2, LAN x 2, analog link x 2 |
RJ45: control inputs x 2, control outputs (open collector) x 2, DS link x 1, remote microphones x 2, LAN x 2, analog link x 2 |
