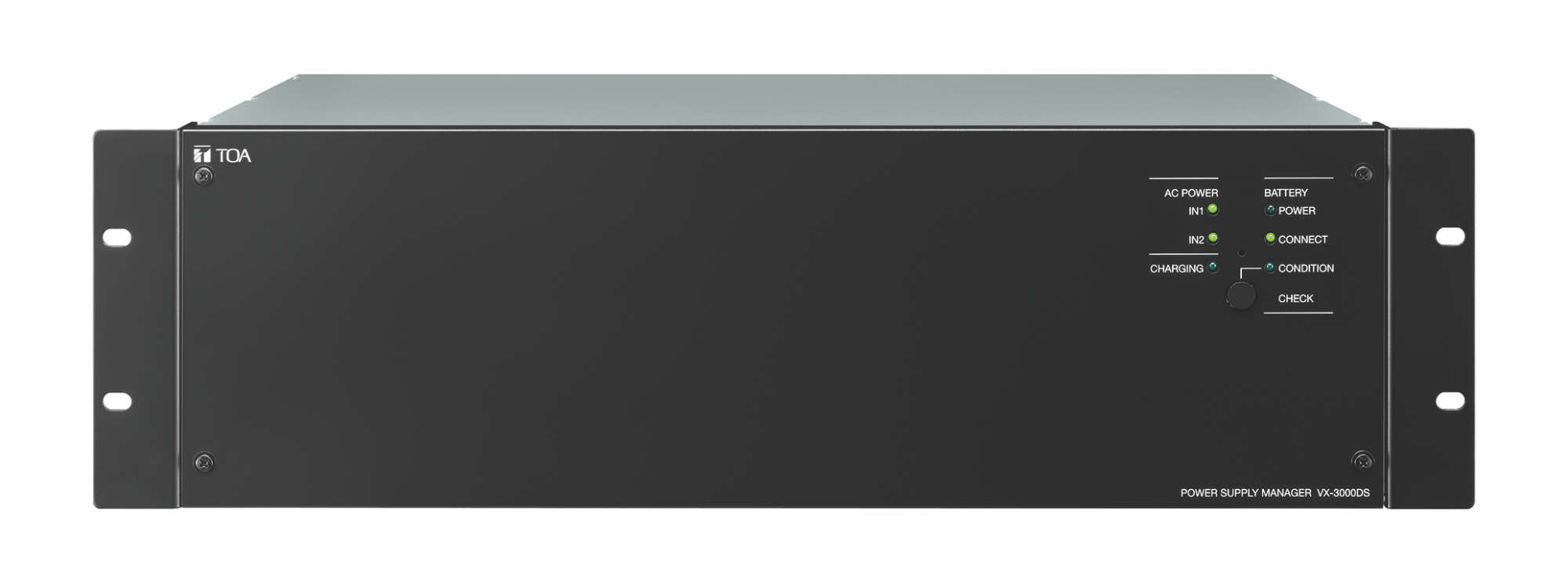

Emergency Power Supply

  • DC power supply to all system components
  • Combination of built-in power source unit with a high-performance charger
  • Automatical switch to auxiliary battery power if the AC power supply is down
  • VX-3150DS: EN 54-4 certified, Certificate No: 1134-CPR-137



Brochure



  • Specifications
  • Downloads
Specifications
Specifications for product:
VX-3150DS VX-3000DS
Power source

220 - 230 V AC, 50 / 60 Hz

220 - 230 V AC, 50 / 60 Hz
Power / current consumption

Approx. 1460 W max. (at rated output with charging),

460 W (EN 60065)

2800 W max.(at rated output with charging),

350 W (EN 60065)
Charging method

Temperature compensated trickle charging

Temperature compensated trickle charging
Battery connection

One each positive and negative terminal, applicable cable diameter: AWG 6 – AWG 0 (AWG 1/0) (16 mm2 – 50 mm2)

Line resistance within 4 mΩ / total

One each positive and negative terminal, applicable cable diameter: AWG 6 – AWG 0 (AWG 1/0) (16 mm2 – 50 mm2)

Line resistance within 4 mΩ / total
Operating temperature

-5 °C to +45 °C

-5 °C to +45 °C
Finish

Steel plate, black

Steel plate, black
Dimensions

482 x 132.6 x 400.5 mm (W x H x D)

482 x 132.6 x 400.5 mm (W x H x D)
Weight

9 kg

11.8 kg
Outputs

DC power output:
8 x 31 V (19 – 33 V) 25 A max. each, M4 screw terminal, distance between barriers: 11 mm


3 x 31 V (19 – 33 V) 5 A max. each, removable terminal block (3 x 2 pins)


1 x 24 V (16 – 25 V) 0.3 A max., removable terminal block (1 x 2 pins

DC power output:
8 x 31 V (19 – 33 V) 25 A max. each, M4 screw terminal, distance between barriers: 11 mm


3 x 31 V (19 – 33 V) 5 A max. each, removable terminal block (3 x 2 pins)


1 x 24 V (16 – 25 V) 0.3 A max., removable terminal block (1 x 2 pins
Charging output voltage

27.3 V ±0.3 V (at 25 ˚C), Temperature correction coefficient: -40 mV/ ˚C

27.3 V ±0.3 V (at 25 ˚C), Temperature correction coefficient: -40 mV/ ˚C
Control connector

RJ45 female connector for connecting the system and cascade connection

Shielded Twisted-pair straight cable (TIA/EIA-568A standard)

RJ45 female connector for connecting the system and cascade connection

Shielded Twisted-pair straight cable (TIA/EIA-568A standard)
DS LINK IN/OUT

Type of control signal: Battery check, AC power status, DC power status, charging circuit failure, battery failure, and communication

Type of control signal: Battery check, AC power status, DC power status, charging circuit failure, battery failure, and communication
Panel indicator

AC power IN 1, Charging (Green), Battery power (Green), Battery connect (Green), Battery condition (Green)

AC power IN 1, IN 2 (Green), Charging (Green), Battery power (Green), Battery connect (Green), Battery condition (Green)
