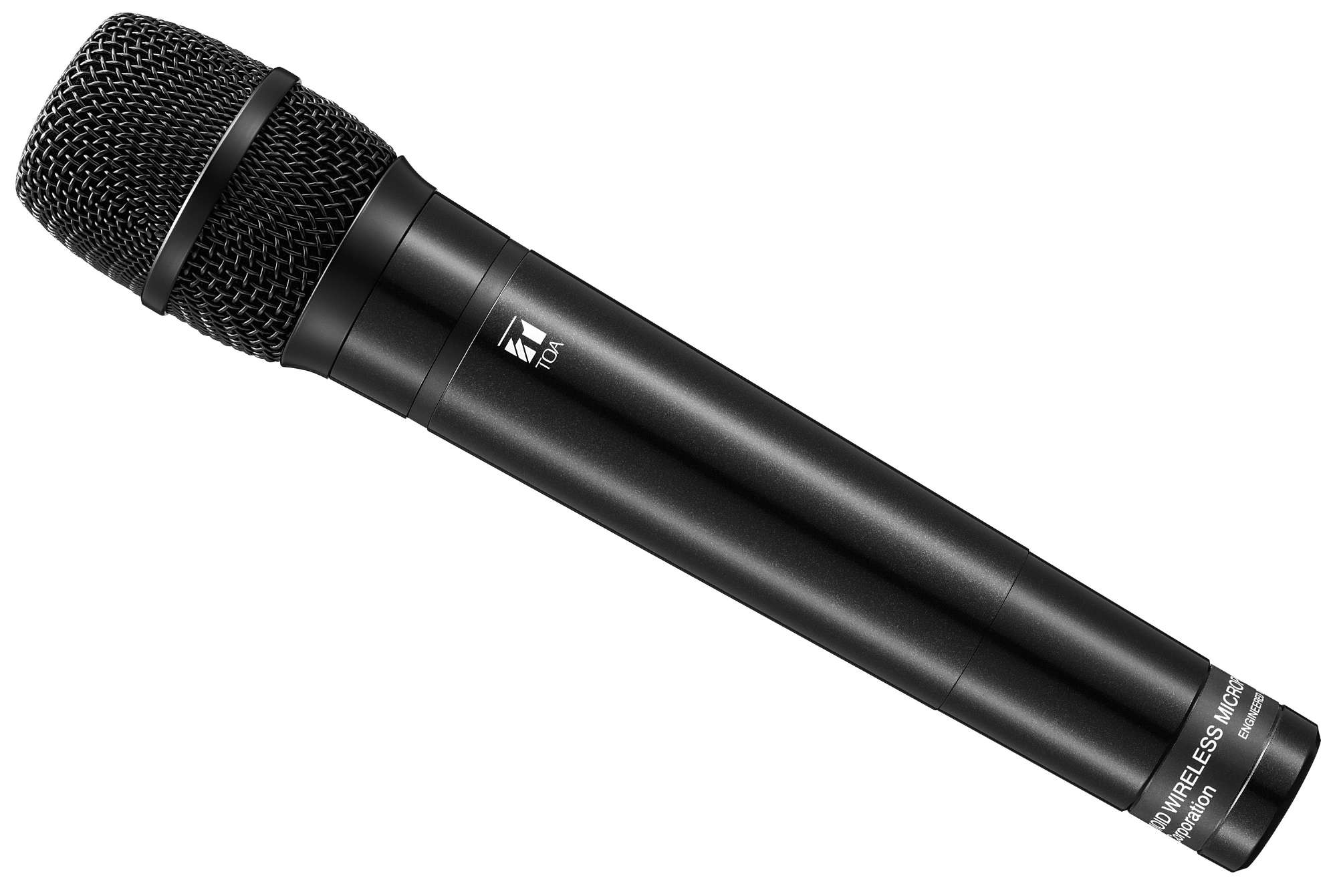

WM-5270 C07

Wireless microphone

The WM-5270 Wireless Microphone employs a dynamic microphone capsule with high input handling capacity and is suitable for vocal application and other professional uses. Thanks to the PLL-synthesizer system, 16 different operating frequencies (4 banks) are made available. A high output power ensures stable radio signal transmission. The maximum input sound pressure can be set in the range of 130 dB SPL to 142 dB SPL by a PAD switch, permitting adaptation to wide range of input sound pressure.

  • Dynamic vocal microphone with a cardioid pickup pattern with excellent sound characteristics
  • Robust construction and its well-balanced weight
  • On/off-switch is located at the bottom of the microphone body to protect accidentally activation during a live performance
  • Highly immune to handling noise and feedback
  • Professional vocal microphone for live use within our 5000 Series




  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
WM-5270 C07 WM-5265 C07 WM-5225 C07
Power source

Battery 1 AA size alkaline battery, 1.5 V

Battery 1 AA size alkaline battery, 1.5 V or WB-2000-2

Battery 1 AA size alkaline battery, 1.5 V or WB-2000-2

Frequency range

794 – 830 MHz

794 – 830 MHz

794 – 830 MHz

Selectable frequencies

64

64

64

Microphone type

Dynamic

Dynamic

Electret condenser

Directivity

Cardioid

Hypercardioid

Cardioid

Operating temperature

-10°C ... +50°C

-10°C ... +50°C

-10°C ... +50°C

Finish

Metal, dark grey

Resin, black

Resin, black

Dimensions

48 x 244 mm (Ø x D)

50 x 229 mm (Ø x D)

43.6 x 231.5 mm (Ø x D)

Weight

340 g (with battery)

205 g (with battery)

180 g (with battery)

Battery life

10 h

10 h

10 h

Simultaneous channels

16

16

16

AF response

80 Hz - 15 kHz

100 Hz - 15 kHz

100 Hz - 15 kHz

RF output power

10 mW

10 mW

10 mW

Max. input level

142 dBSPL

132 dBSPL

126 dBSPL
