Security has never been more crucial than it is today. In an increasingly complex and interconnected world, reliable communication systems are vital for ensuring safety and protection. This is especially true in high-risk environments such as industrial facilities, public spaces, and large-scale venues, where the need for robust audio solutions is growing rapidly.
Audio plays a essencial role in maintaining safety and security. At TOA, we are dedicated to delivering high-quality audio products designed to enhance safety through sound. Our advanced audio technology, including voice alarm systems, IP-audio solutions, and premium loudspeakers, is purpose-built to meet the demands of modern security challenges. By leveraging our expertise in sound, we provide the right audio solutions to integrate seamlessly with your security systems and ensure effective communication when it matters most.
For safe community development
Busy intersections and crowded streets are prone to crime and accidents. It is therefore vital to install a system that provides early detection and assistance regarding crimes as well as accidents in large cities. 24-hour remote surveillance via CCTV and live audio announcements are effective deterrents in areas with a large amount of street crime such as car theft, armed robbery and hijacking. Spontaneous reports to police or security companies in an emergency also assists in managing and controlling such incidents.
Functions and Advantages
- CCTV surveillance, communication and loud speaker devices integrated into one system
- Operators monitor the area from a surveillance room and an audio warning (pre-recorded or live) is issued when illegal parking or car theft is seen
- In the event of a crime or accident, police officers at the local police station can be contacted by the push of a button and callers can communicate with the police by using both video and audio systems
- Red emergency lighting and an alarm sound can also be triggered by pushing the button to alert people in the immediate area
Application areas
- Community: Roads, Gated Housing Estates
- Parking Lots, Train / Bus Stations
- Construction sites
- Mines, Factories, Power Stations
- Universities, Educational Institutions
Use Cases
- Real Estate with Fencing

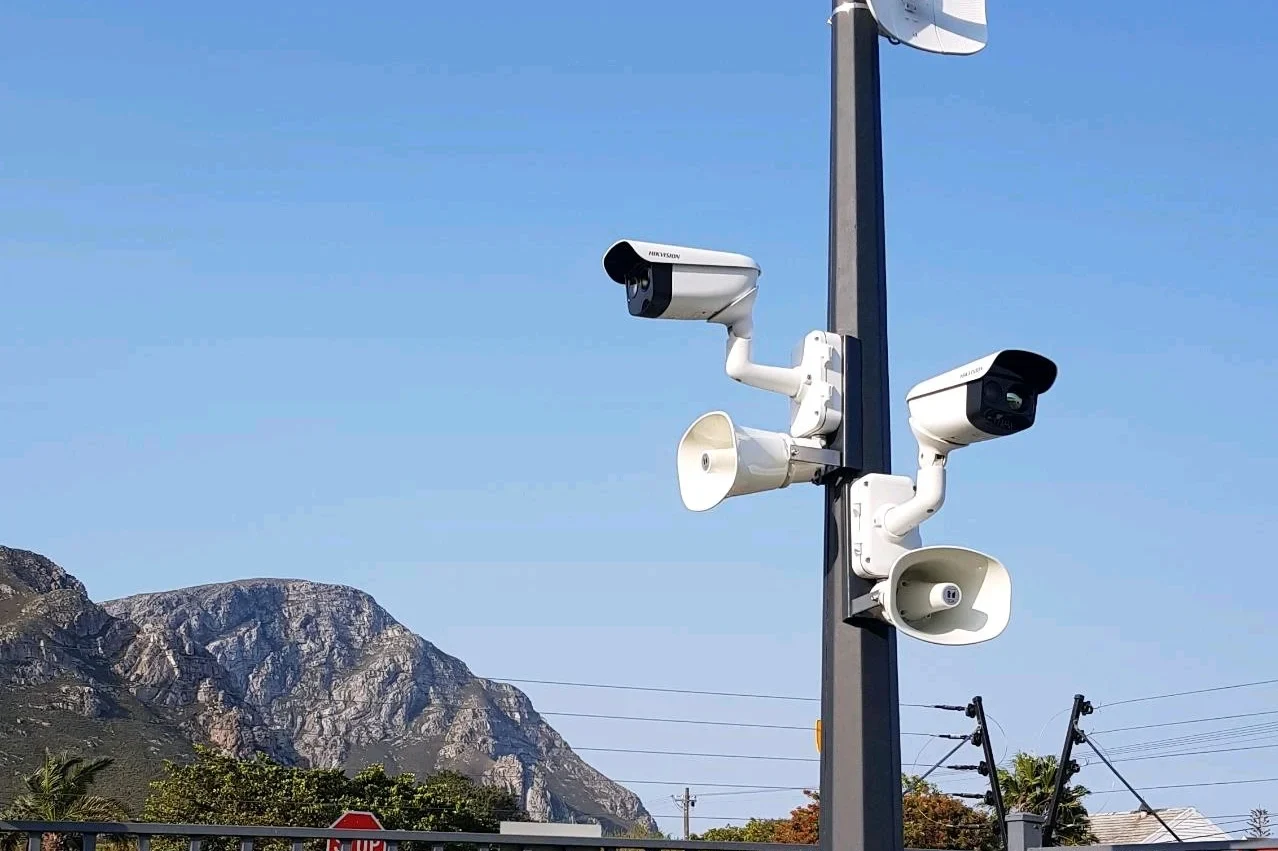

- Super Security Poles
- Inner City Surveillance Systems

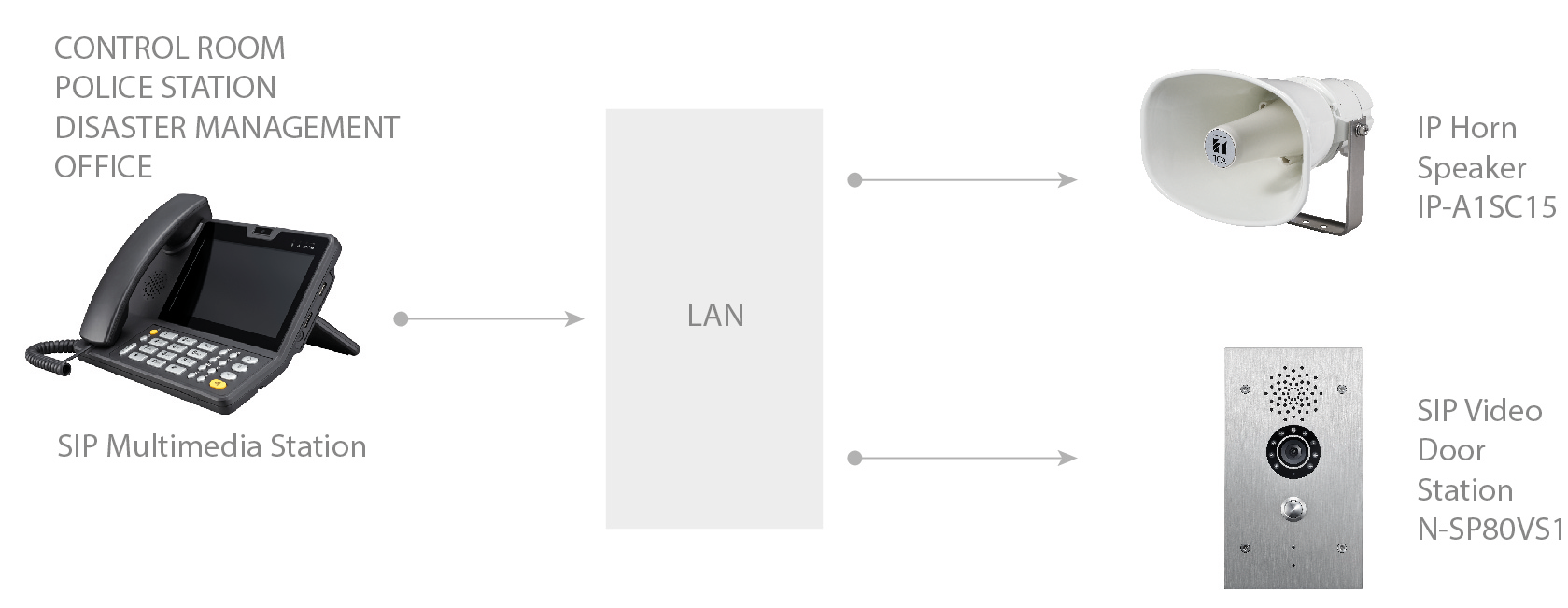

Super Security Pole is composed of
SIP Network Intercom System, IP CCTV and IP (POE / SIP) Horn Speaker

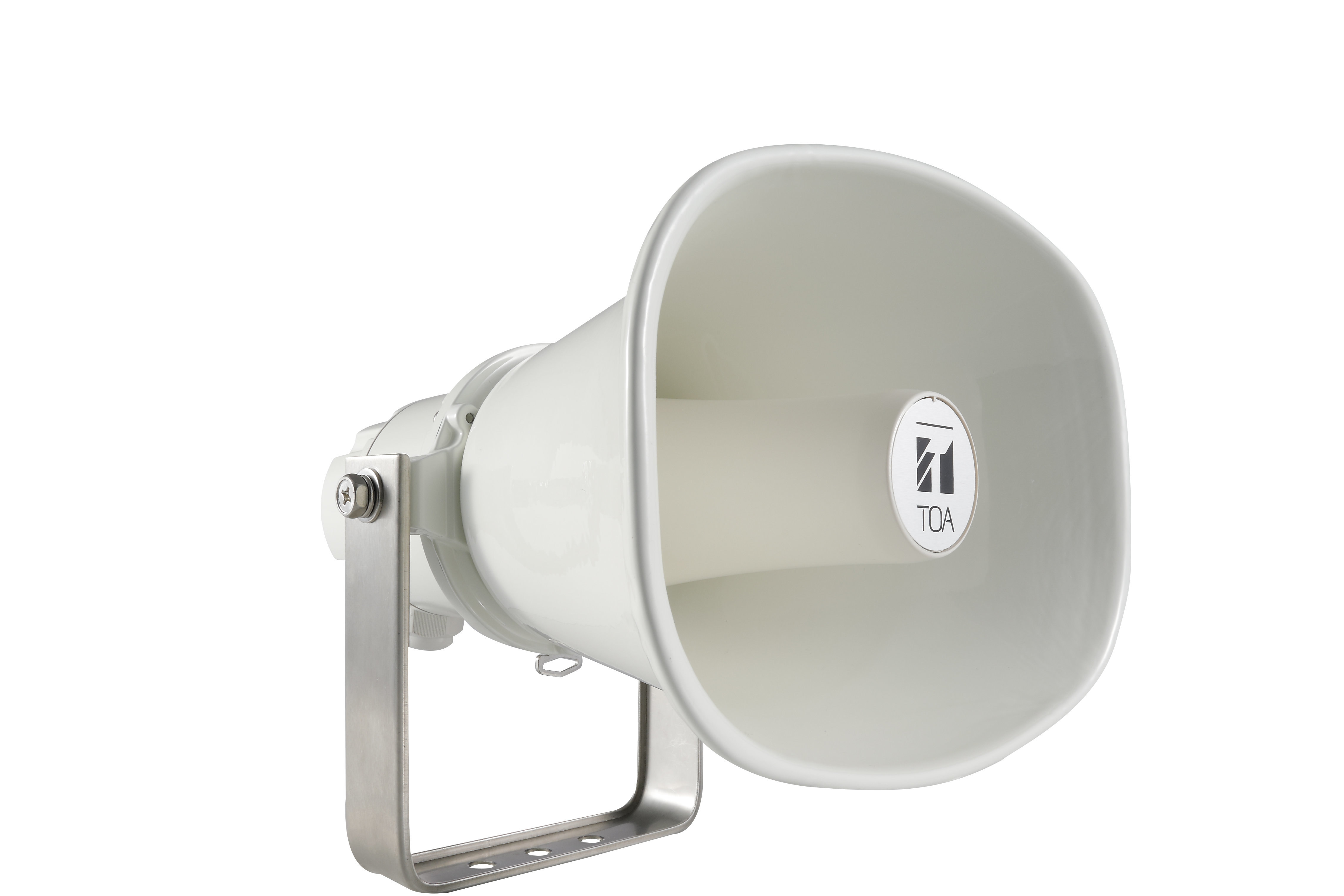

IP Horn Speaker IP-A1SC15
Features IP-A1SC15
APPLICATIONS
- Maximum sound pressure level is 124dB at 15 W powered with PoE+
- Operating temperature is -30 °C to +55 °C
- IP66 (Dust/Water Protection)
- Up to 20 sound sources can be stored on integrated audio source
- Individual volume level adjustment to each audio source to ensure uniform and harmonized output
- IP-A1SC15 can be integrated with security video surveilance system via network platform using ONVIF protocol
- Simple to install wherever you need a strong voice: A single standard network cable provides both power and connectivity with your network
- Easy to customize over API (Application Programming Interface): Adapt the individual volume to the environmental noise level and optimize it to time of day, distance, and degree of emergency
- Video Management Systems
- SIP Systems
- Construction sites
- Parking garages
- Perimeter Protection
- Shopping centers
- Malls
- Access control points
- Stadiums
- Sport facilities
- Security service
- Factories
IP A1 Series with VMS

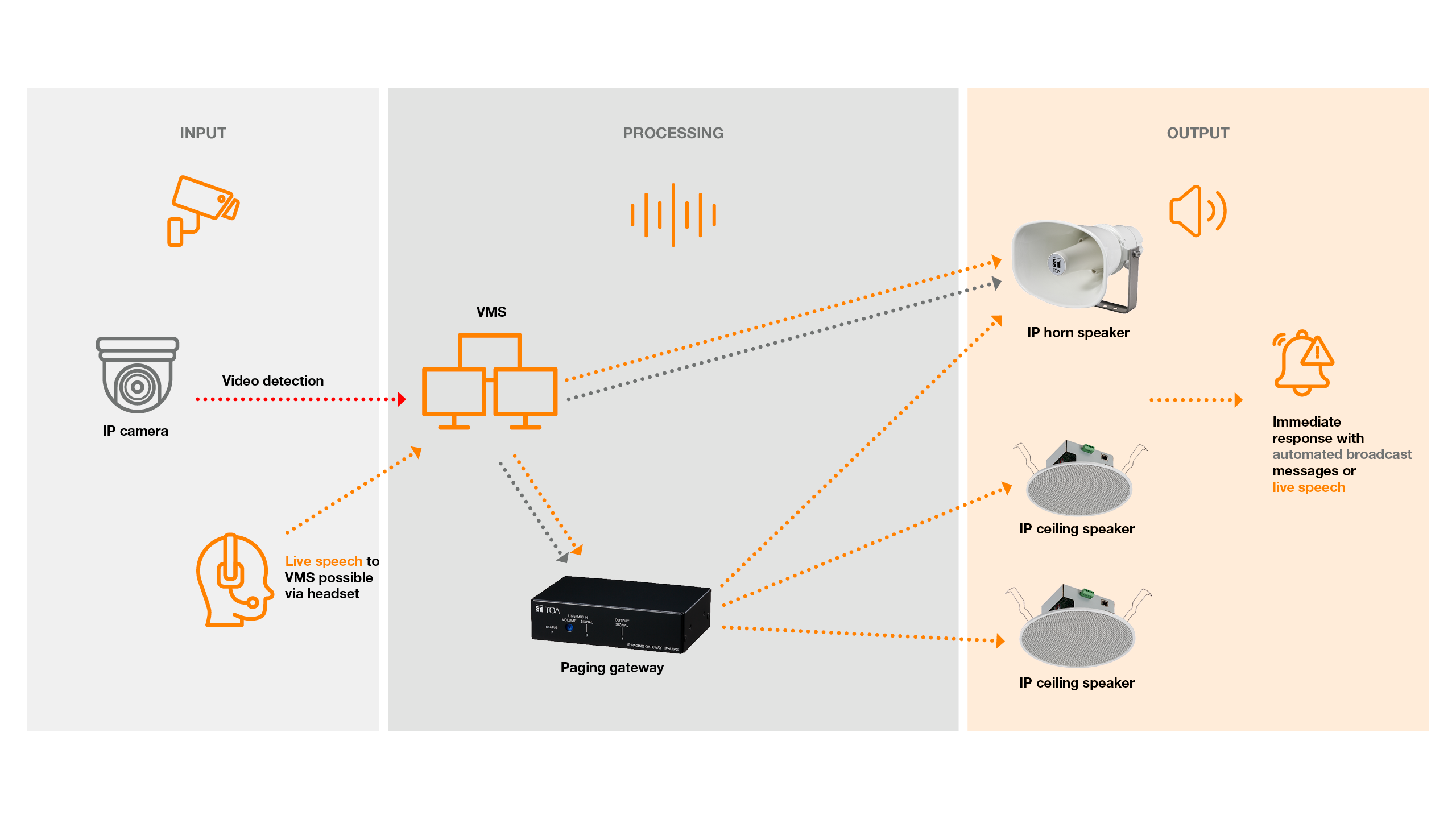

VMS Integration
Placeholdertext: The IP-A1SC15 and IP-A1PC238 IP speakers integrate smoothly into your VMS using ONVIF* audio streaming, allowing you to respond immediately to alerts or emergencies with live speech. The IP-A1PG IP paging gateway enables one-to-one calls to be broadcast as multicast audio streams, reaching multiple speakers simultaneously for efficient coverage. Additionally, the IP-A1PA12 IP power amplifier allows you to create small paging zones using multiple high-impedance speakers.

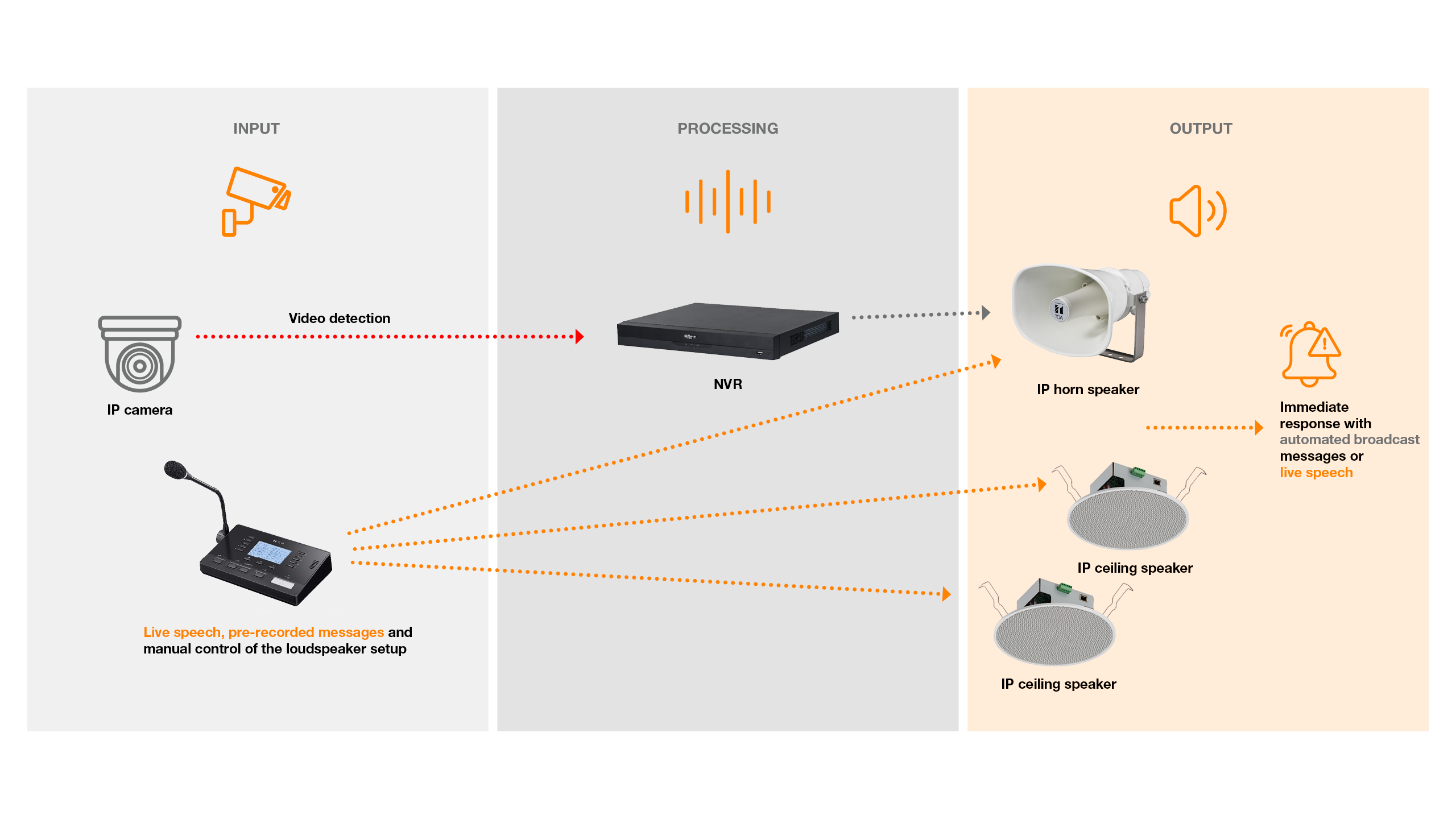

NVR Integration
Placeholdertext: Our weatherproof IP-A1SC15 IP horn speaker is ideal for tough environments like construction sites or manufacturing facilities. With internal storage for pre-recorded messages, the speaker allows easy playback triggered directly by your NVR over the network. Need manual control? The IP-A1RM remote microphone adds flexibility, enabling live speech and hands-on control of your loudspeaker setup.

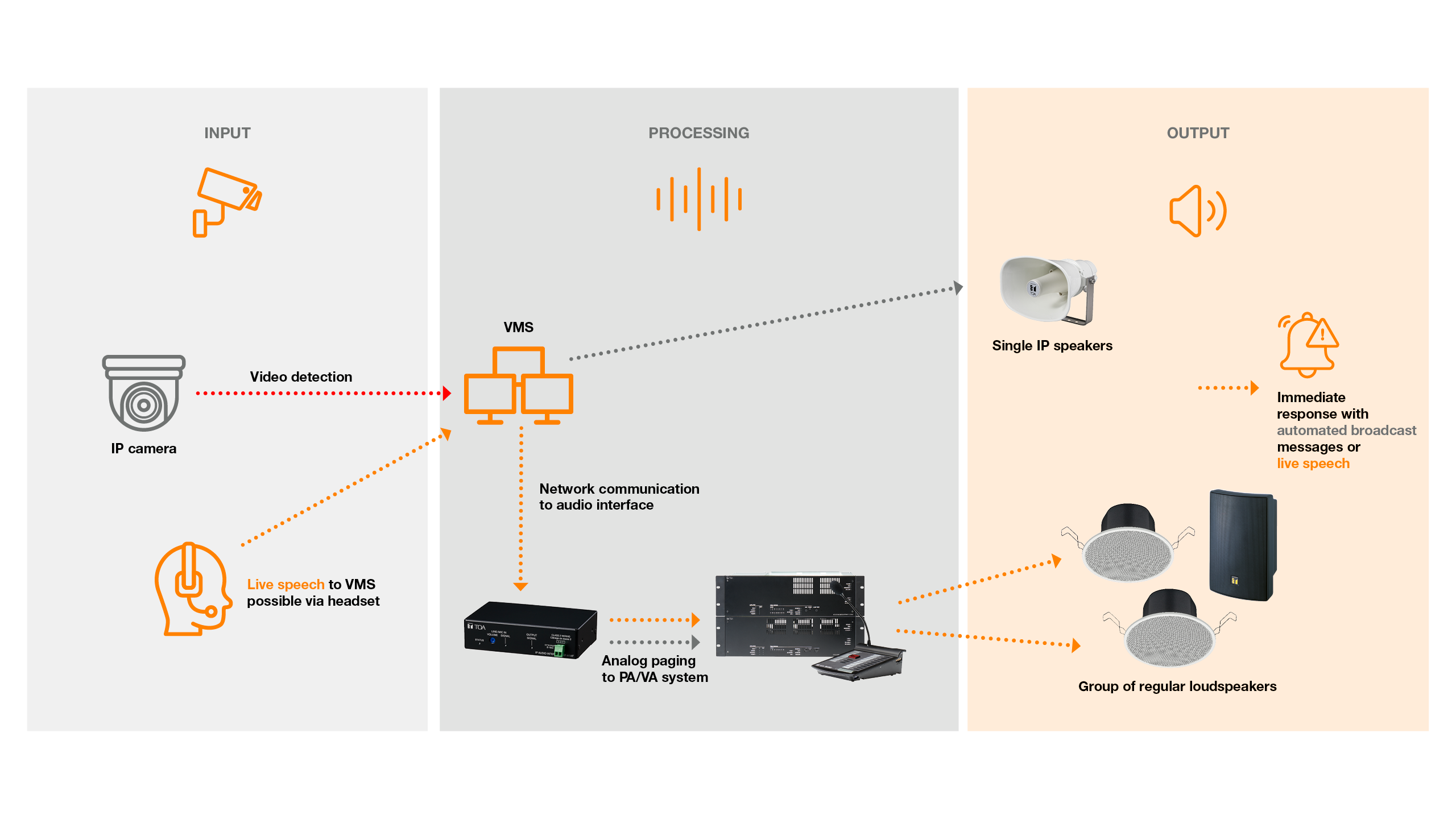

Expanding existing Networks, combining IP-Audio and enhancing your security system
Placeholdertext: While having many options to support your existing SIP network or setting up a new one, customized for your needs. Our solution to secure and prevent you're property our system is highly scalable. The example below shows the combination with our VX-3000 Voice alarm System in combination with a VMS and our IP-Audio products.
