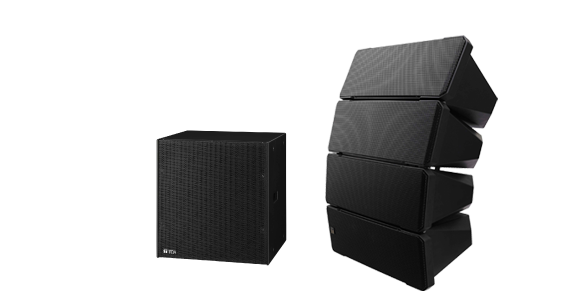

HX-7 Variable Dispersion Line Array Series

TOA’s HX-7 is a powerful and compact line array speaker with multiple installation options. It comes into play when pristine clarity in a wide range of application from sporting venues, auditoriums, concert halls to acoustical challenging houses of worship is needed.


Speaker design consist of four integrated modules that can be easily adjusted to optimize the vertical dispersion angle. Thanks to its enclosure design, HX-7 allows adjustment of sound dispersion angles of 0-15-30-45 and 60 degrees. Built-in isophasic wavefront control horn with compression driver ensures HF control and reproduction of HF sounds. HX-7 incorporates eight 5.5-inch LF woofers together with four 1-inch waveguide-loaded HF compression drivers. They are loaded onto a wave-control horn, offering SYNC-DriveTM waveguide technology. With a sensitivity (1W, 1m) of 100dB, the HX-7 operates within a frequency response of 75Hz to 20kHz. Enclosure is finished in either black or white, while weatherproof versions are also available. The IPX4-rated versions (WP) operating within a 105Hz to 20kHz frequency range. When combined with the FB-150B compact subwoofer, systems frequency range can be extended to 40Hz. Hanging brackets, speaker stands and mounting bolts promote the systems use in a variety of applications.

www.toa.eu
